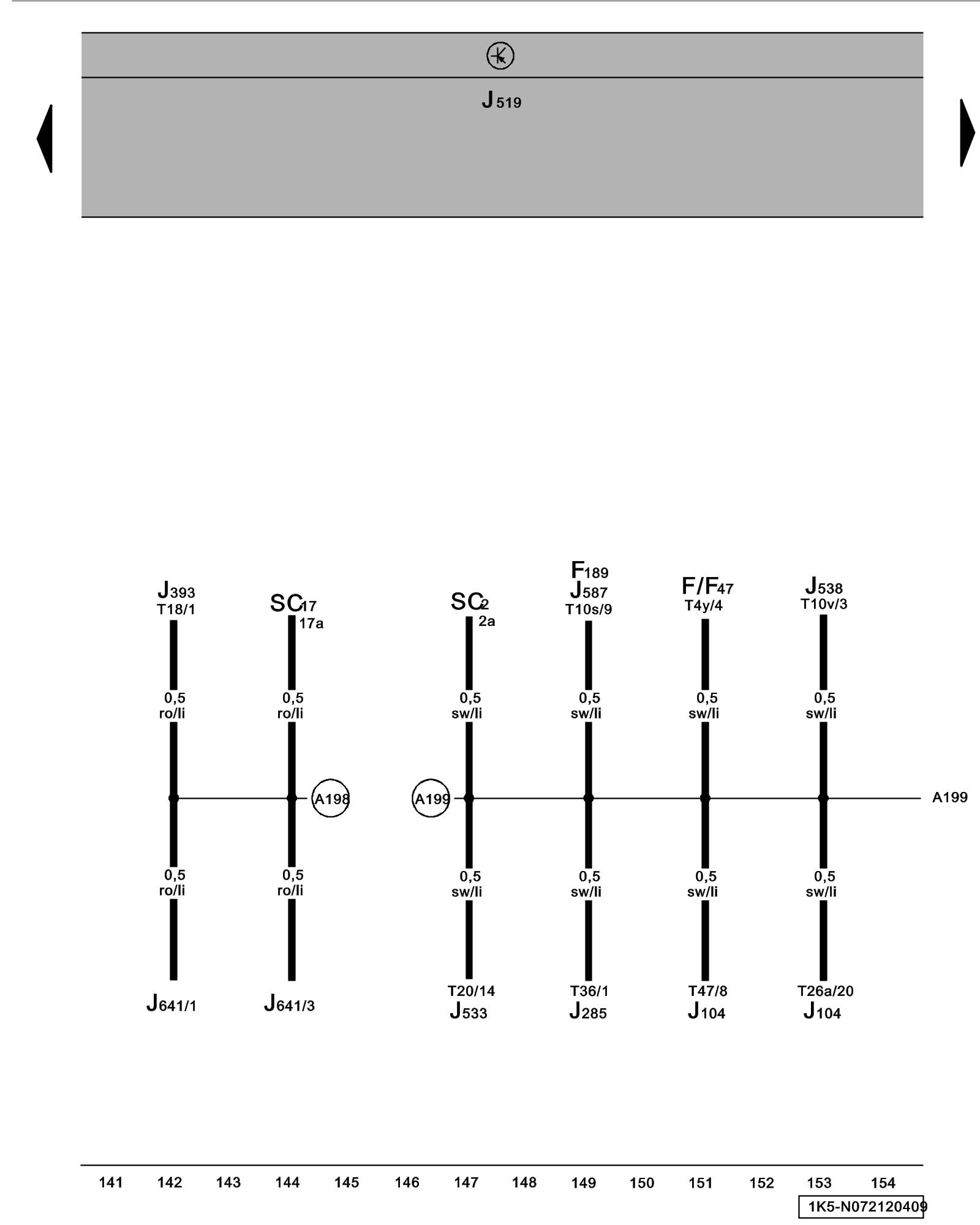

Diagram 72/12 (Tracks 141-154)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Power and signal splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake Light Switch Locations

F47 - Brake Pedal Switch Locations [1][2]Brake Light Switch

F189 - Tiptronic Switch

J104 - ABS Control Module Control Modules In Engine Compartment

J285 - Instrument Cluster Control Module Control Modules In Interior, From July 2007

J393 - Comfort System Central Control Module Control Modules In Interior, From July 2007

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J533 - Data Bus On Board Diagnostic Interface Control Modules In Interior, From July 2007

J538 - Fuel Pump (FP) Control Module Locations

J587 - Selector Lever Sensor System Control Module Direct Shift Gearbox 02E (DSG)

J641 - Alarm Horn Relay Relay Arrangements On Relay Carrier, Under Left Instrument Panel, From Jan 2008

SC2 - Fuse 2 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

SC17 - Fuse 17 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

T4y - 4-Pin Connector

T10s - 10-Pin Connector

T10v - 10-Pin Connector

T18 - 18-Pin Connector

T20 - 20-Pin Connector

T26a - 26-Pin Connector

T36 - 36-Pin Connector

T47 - 47-Pin Connector

(A198) - Connection 6 (30a) (in instrument panel wiring harness)


- Location: In wiring circuit between main wiring harness and T8d connection of roof

(A199) - Plus Connection 4 (15a)(in instrument panel wiring harness)


- Location: In main wiring harness between wiring circuits for power supply (SC) and connector T28 at left A-pillar


- Note: from MY 2008 referenced page 43

Previous Diagram 72/11 (Tracks 127-140)

Next Diagram 72/13 (Tracks 155-168)
