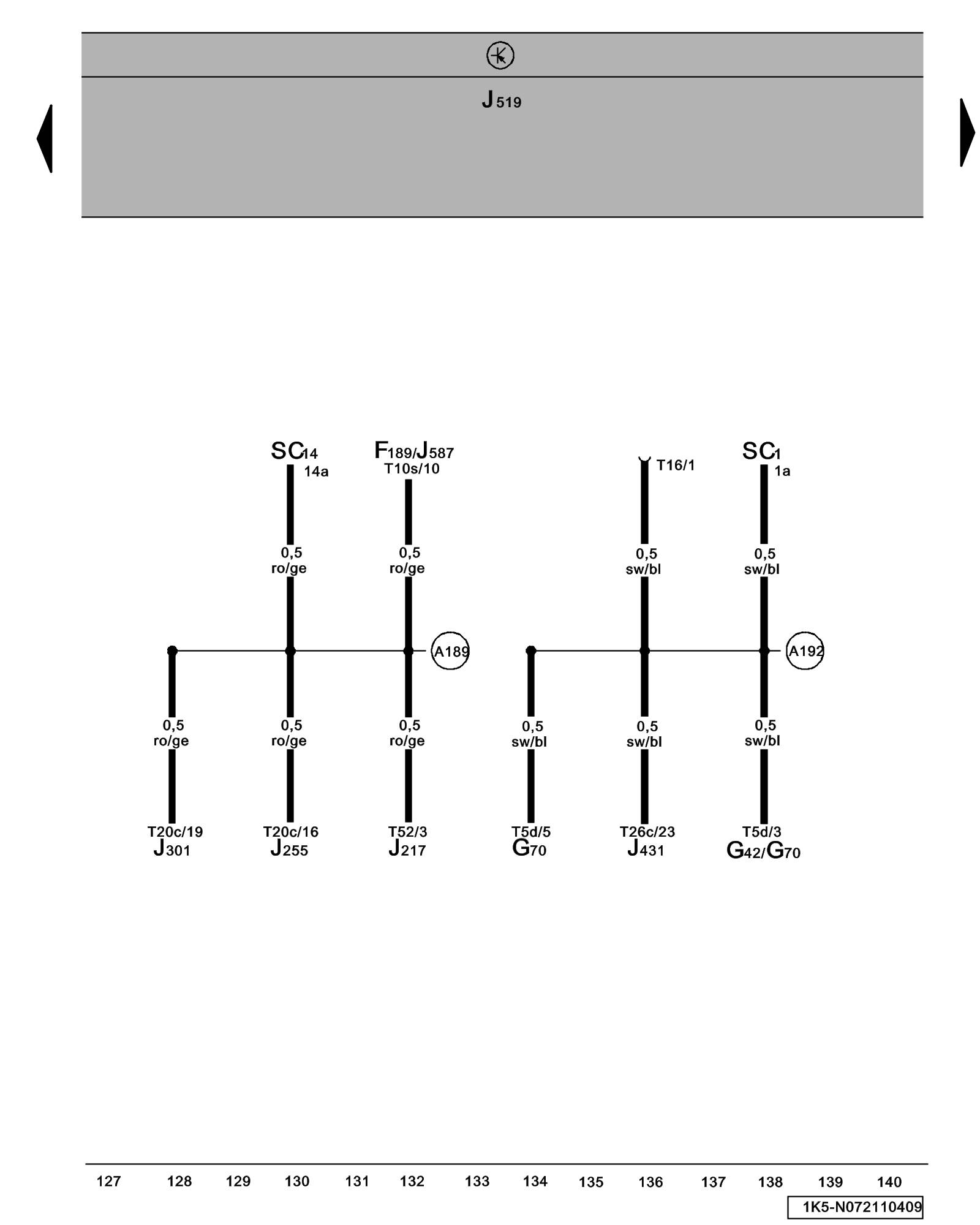

Diagram 72/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Power and signal splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F189 - Tiptronic Switch

G42 - Intake Air Temperature (IAT) Sensor [1][2]Air Temperature Sensor ( Ambient / Intake ) Locations

G70 - Mass Air Flow (MAF) Sensor [1][2]Air Flow Meter/Sensor Locations

J217 - Transmission Control Module (TCM) Control Modules In Engine Compartment

J255 - Climatronic Control Module Passenger Compartment Climatronic (Automatic Climate Control) System

J301 - A/C Control Module Passenger Compartment A/C And Heating System

J431 - Headlamp Range Control Module

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J587 - Selector Lever Sensor System Control Module Direct Shift Gearbox 02E (DSG)

SC1 - Fuse 1 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

SC14 - Fuse 14 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

T5d - 5-Pin Connector

T10s - 10-Pin Connector

T16 - 16- pin connector, Data Link Connector (DLC), bellow steering column, left

T20c - 20-Pin Connector

T26c - 26-Pin Connector

T52 - 52-Pin Connector

(A189) - Plus Connection 5 (30a) (in instrument panel wiring harness)


- Location: In main wiring harness between wiring circuits for W6 - Glove Compartment Light and T10k connection for A/C

(A192) - Plus Connection 3 (15a) (in instrument panel wiring harness)


- Location: In wiring circuit between main wiring harness and power supply (SC)
