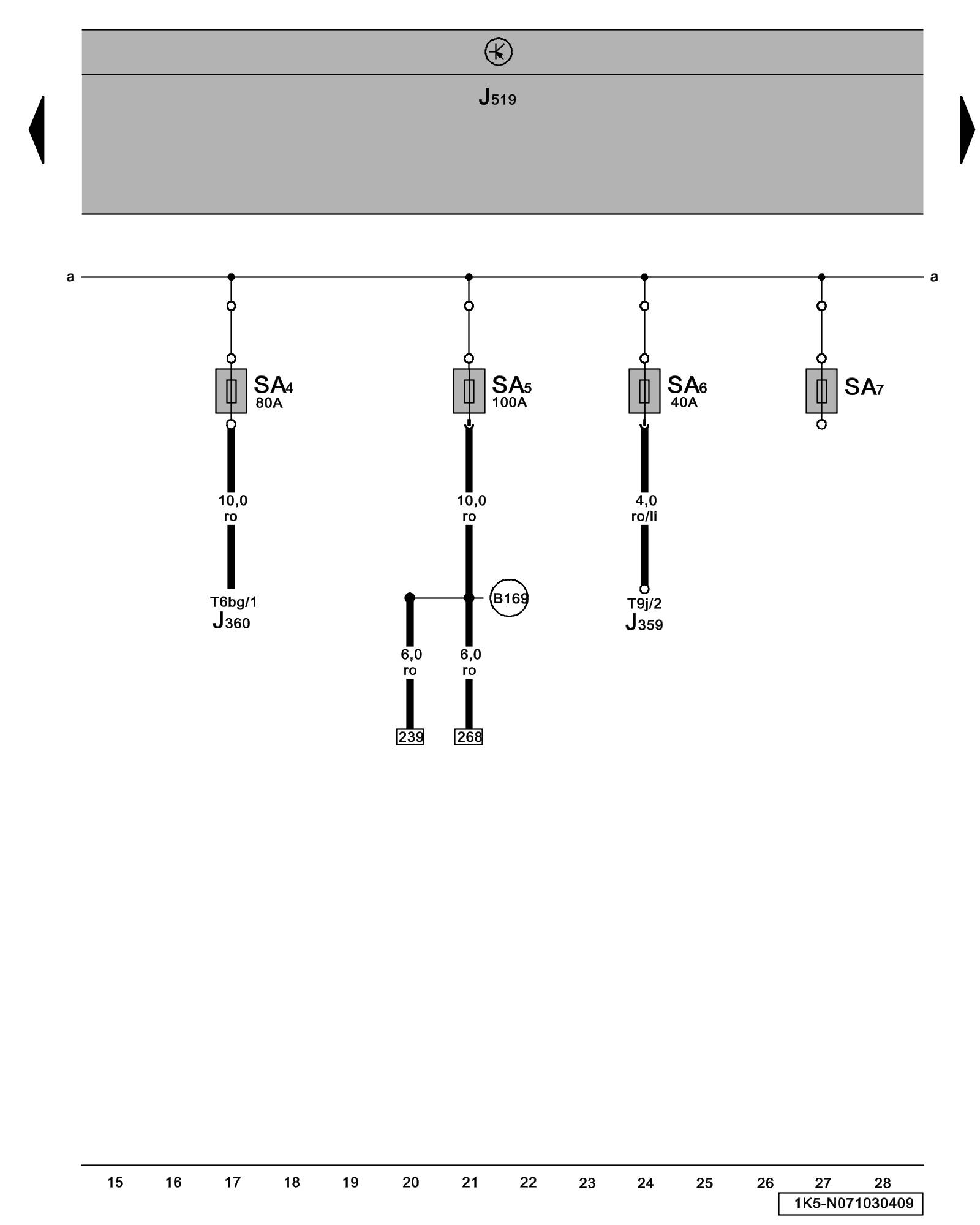

Diagram 71/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses on fuse panel A





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J359 - Preheating Coolant, Low Heat Output Relay

J360 - Preheating Coolant, High Heat Output Relay

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

SA4 - Fuse 4 (on fuse panel A) Position Of Fuses (SA) On Fuse Panel/battery On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SA) On Fuse Panel/battery On Electronics Box, In Engine Compartment, Left, From Jan 2008

SA5 - Fuse 5 (on fuse panel A) Position Of Fuses (SA) On Fuse Panel/battery On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SA) On Fuse Panel/battery On Electronics Box, In Engine Compartment, Left, From Jan 2008

SA6 - Fuse 6 (on fuse panel A) Position Of Fuses (SA) On Fuse Panel/battery On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SA) On Fuse Panel/battery On Electronics Box, In Engine Compartment, Left, From Jan 2008

SA7 - Fuse 7 (on fuse panel A) Position Of Fuses (SA) On Fuse Panel/battery On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SA) On Fuse Panel/battery On Electronics Box, In Engine Compartment, Left, From Jan 2008

T6bg - 6-Pin Connector

T9j - 9-Pin Connector

(B169) - Plus Connection 1 (30) (in passenger compartment wiring harness)

Previous Diagram 71/2 (Tracks 1-14)

Next Diagram 71/4 (Tracks 29-42)
