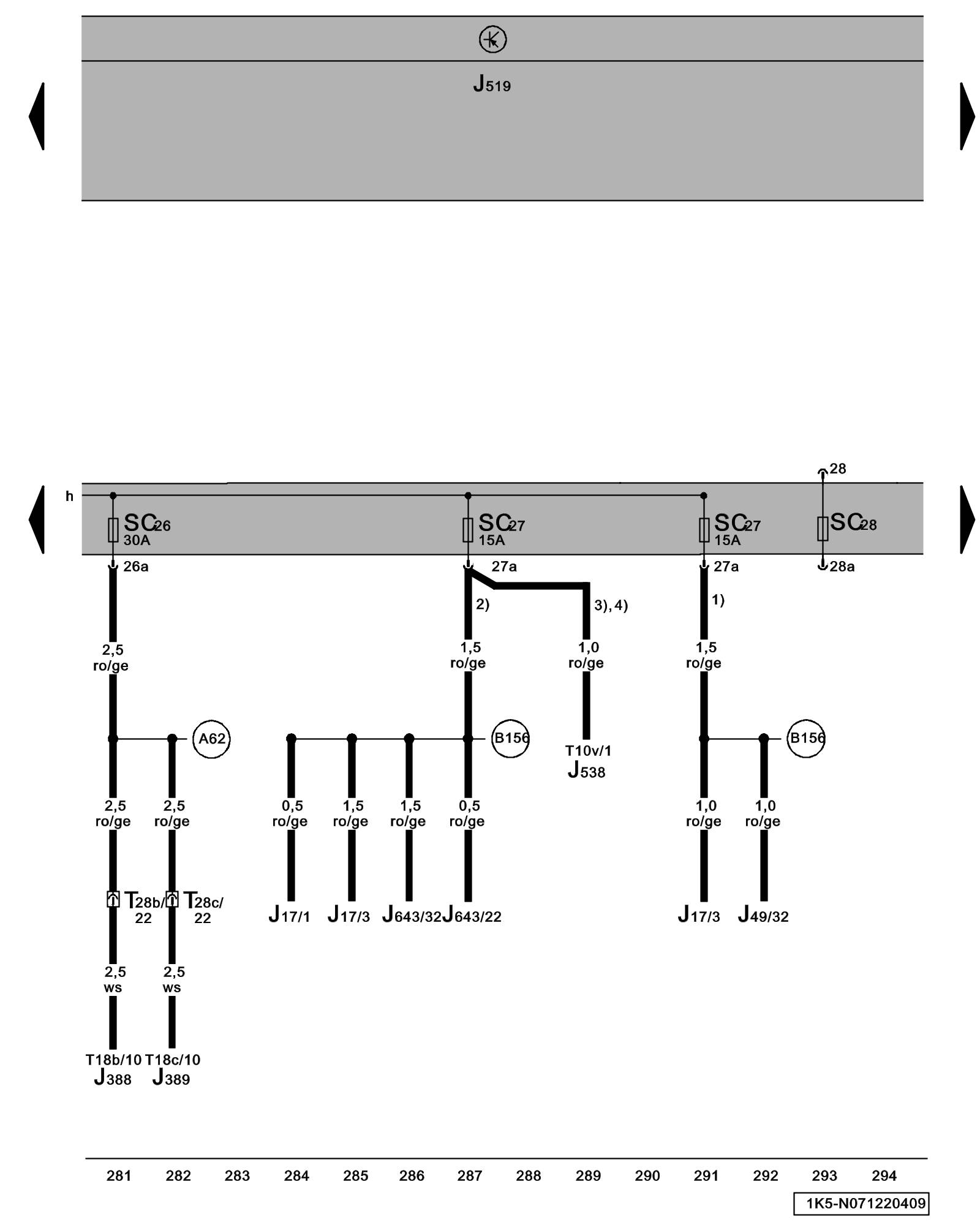

Diagram 71/22 (Tracks 281-294)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Fuses (on fuse panel C)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J17 - Fuel Pump (FP) Relay Overview Of Position Of Relays

J49 - Fuel Pump (FP) 2 Relay

J388 - Left Rear Door Control Module Control Modules In Interior, From July 2007

J389 - Right Rear Door Control Module Control Modules In Interior, From July 2007

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J538 - Fuel Pump (FP) Control Module Locations

J643 - Fuel Primer Relay

SC26 - Fuse 26 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

SC27 - Fuse 27 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

SC28 - Fuse 28 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

T10v - 10-Pin Connector

T18b - 18-Pin Connector

T18c - 18-Pin Connector

T28b - 28-Pin Connector

T28c - 28-Pin Connector

(A62) - Window Regulator Connection (in instrument panel wiring harness)

(B156) - Plus Connection (30a) (in interior wiring harness)

1) - Engine code CBEA only

2) - Engine codes CBTA, CBUA only

3) - Engine code CCTA only

4) - Engine code CBFA only
