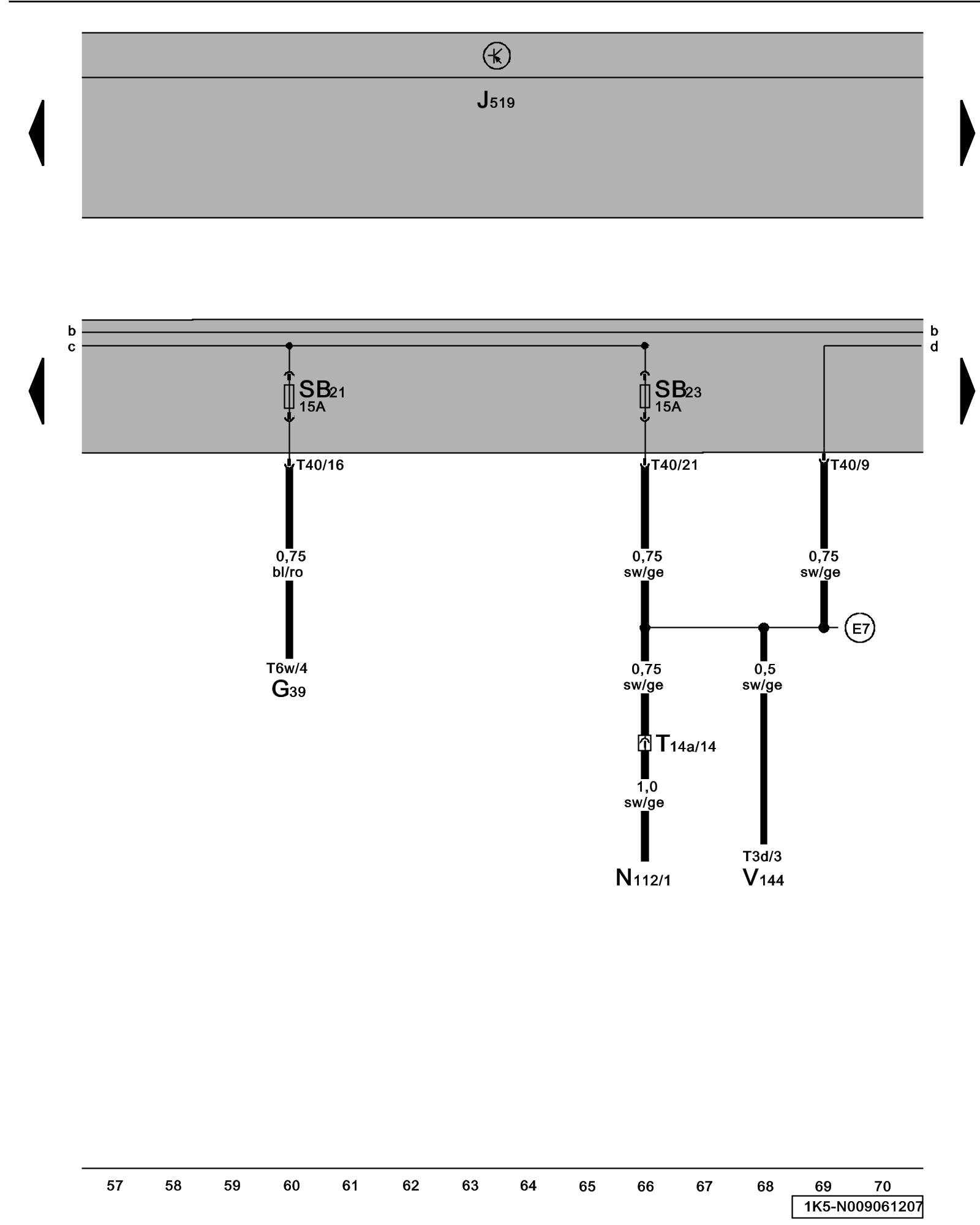

Diagram 9/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses on fuse panel B





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G39 - Heated Oxygen Sensor (HO2S) Heated Oxygen Sensor -G39- Locations

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

N112 - Secondary Air Injection (AIR) Solenoid Valve Locations

SB21 - Fuse 21 (on fuse panel B) Position Of Fuses (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008Colors

SB23 - Fuse 23 (on fuse panel B) Position Of Fuses (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008Colors

T3d - 3-Pin Connector

T6w - 6-Pin Connector

T14a - 14-Pin Connector

T40 - 40-Pin Connector

V144 - Leak Detection Pump (LDP) Locations

(E7) - Connection (87a)(in Motronic wiring harness)
