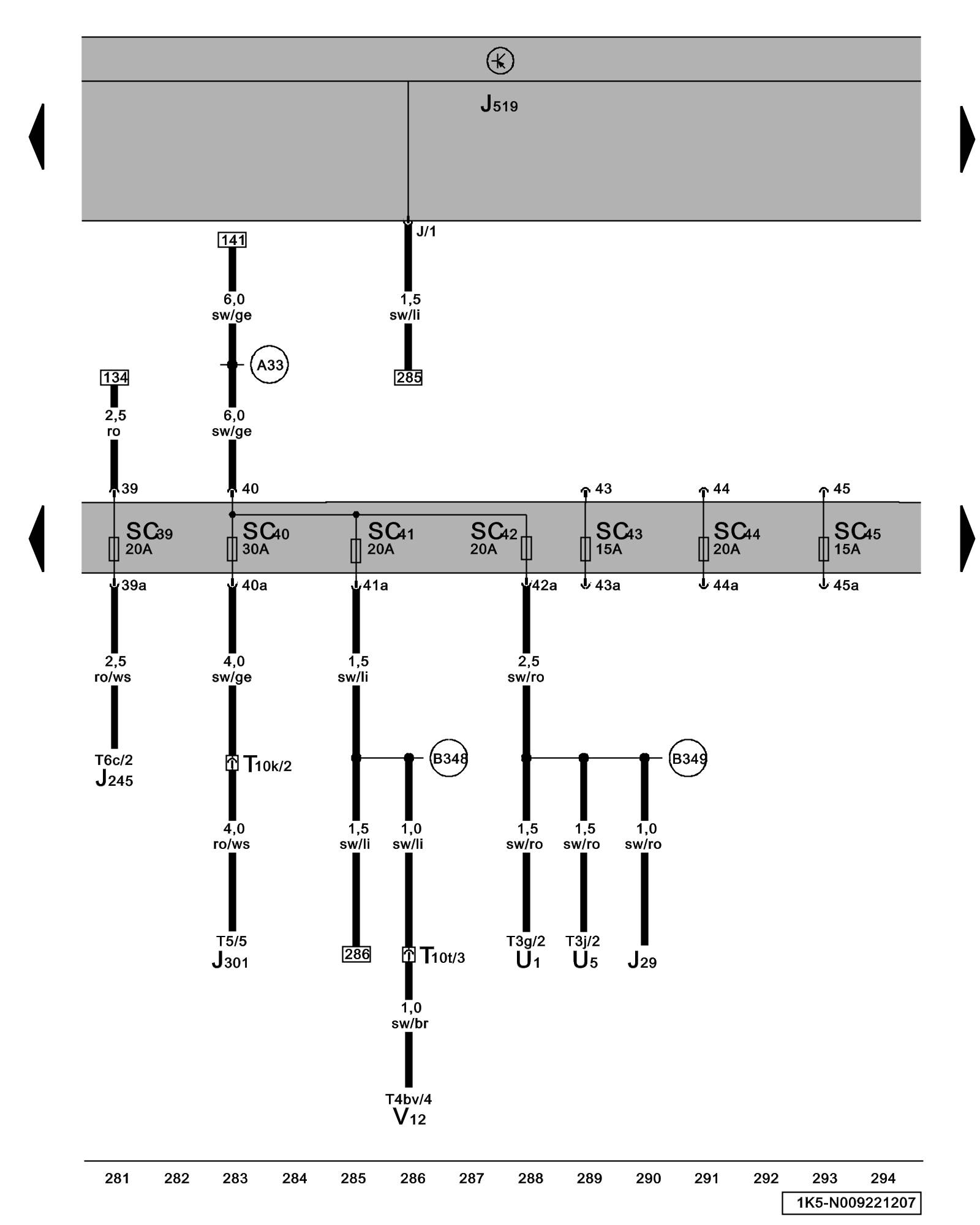

Diagram 9/22 (Tracks 281-294)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Fuses on fuse panel C





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J29 - Blocking Diode

J245 - Power Sunroof Control Module Sunroof w/ Glass Panel Assembly Overview

J301 - A/C Control Module Passenger Compartment A/C And Heating System

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

SC39 - Fuse 39 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

SC40 - Fuse 40 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

SC41 - Fuse 41 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

SC42 - Fuse 42 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

SC43 - Fuse 43 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

SC44 - Fuse 44 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

SC45 - Fuse 45 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

T3g - 3-Pin Connector

T3j - 3-Pin Connector

T4bv - 4-Pin Connector

T5 - 5-Pin Connector

T6c - 6-Pin Connector

T10k - 10-Pin Connector

T10t - 10-Pin Connector

U1 - Cigarette Lighter

U5 - 12 V Socket

V12 - Rear Window Wiper Motor

(A33) - Connection (75) (in instrument panel wiring harness)

(B348) - Connection 1 (75A) (in main wiring harness)

(B349) - Connection 2 (75A) (in main wiring harness)
