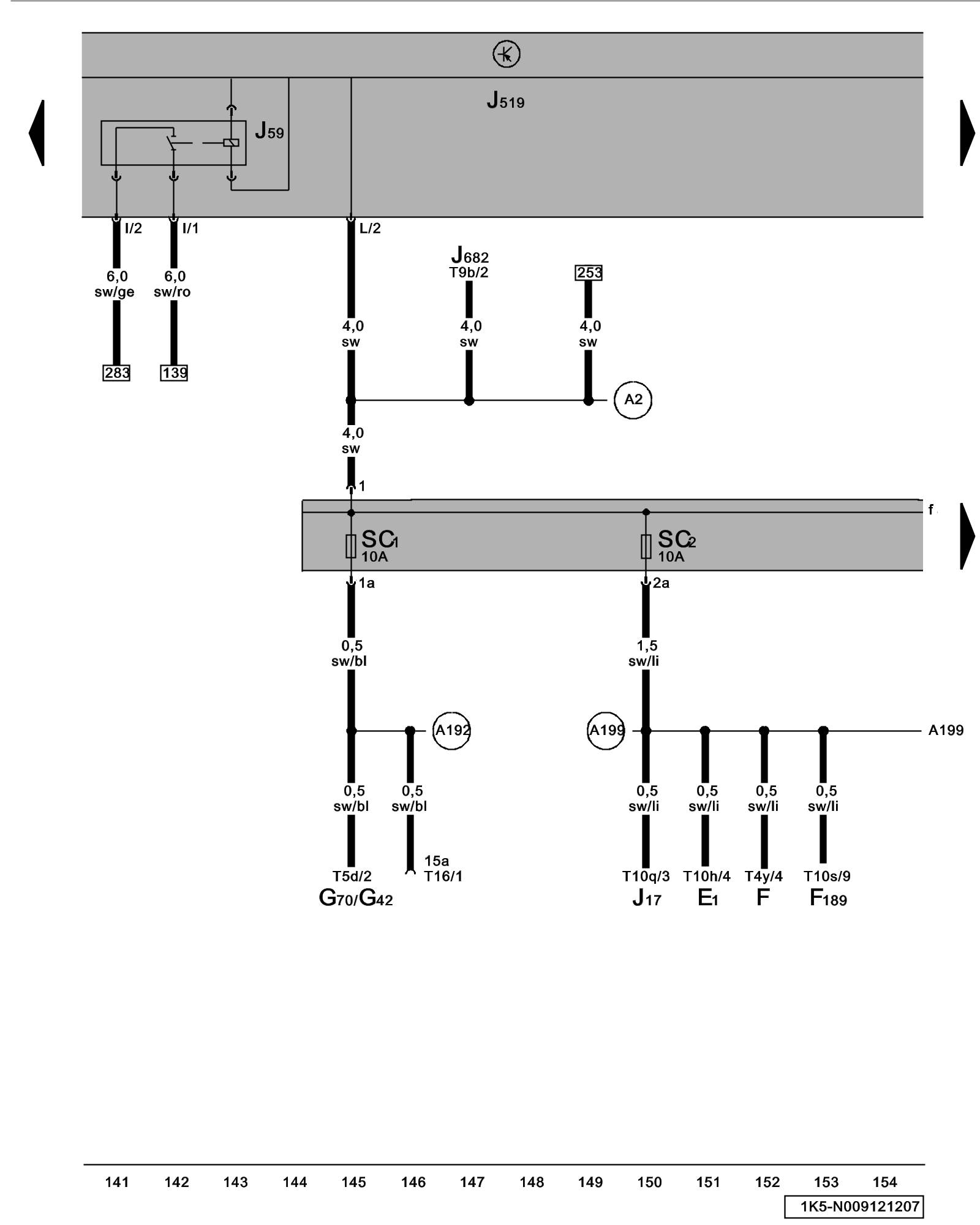

Diagram 9/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Load Reduction Relay, Vehicle Electrical System Control Module, Fuses (on fuse panel C)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light Switch

F - Brake Light Switch Locations

F189 - Tiptronic Switch

G42 - Intake Air Temperature (IAT) Sensor [1][2]Air Temperature Sensor ( Ambient / Intake ) Locations

G70 - Mass Air Flow (MAF) Sensor [1][2]Air Flow Meter/Sensor Locations

J17 - Fuel Pump (FP) Relay Overview Of Position Of Relays

J59 - Load Reduction Relay Relay Arrangements On Vehicle Electrical System Control Module, Under Left Instrument Panel, From Jan 2008

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J682 - Power Supply Relay (terminal 50) Overview Of Position Of Relays

SC1 - Fuse 1 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

SC2 - Fuse 2 (on fuse panel C) Position Of Fuses (SC) In Fuse Panel Instrument Panel, Left Overview Of Fuse Arrangements (SC) In Fuse Panel Instrument Panel, Left Colors

T4y - 4-Pin Connector

T5d - 5-Pin Connector

T9b - 9-Pin Connector

T10h - 10-Pin Connector

T10q - 10-Pin Connector

T10s - 10-Pin Connector

T16 - 16- Pin Connector, Data Link Connector (DLC), below steering column, left

(A2) - Plus Connection (15) (in instrument panel wiring harness)

(A192) - Plus Connection 3 (15a) (in instrument panel wiring harness)

(A199) - Plus Connection 4 (15a)(in instrument panel wiring harness)
