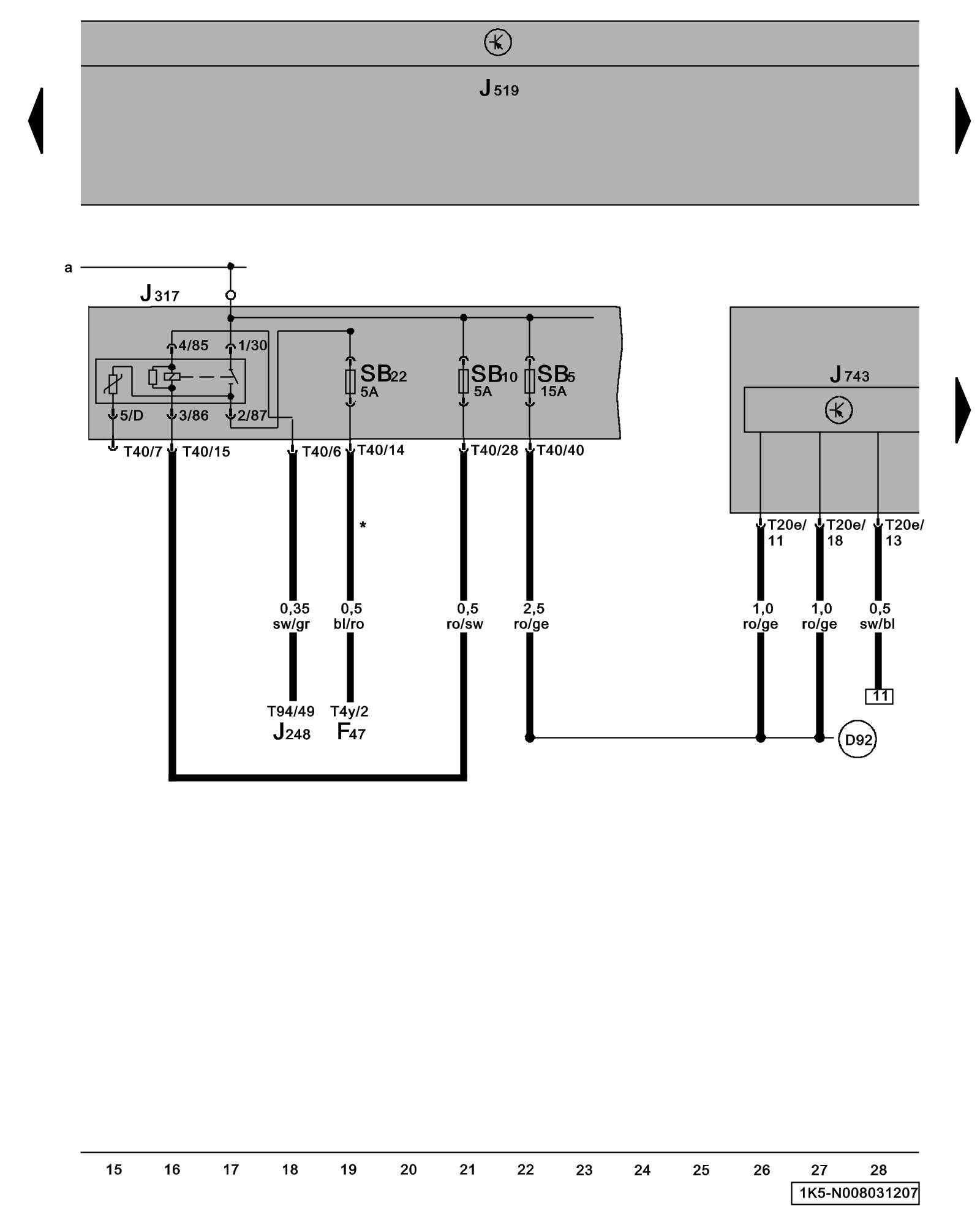

Diagram 8/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Power Supply Relay (terminal 30, B+), Direct Shift Gearbox (DSG) Mechatronic





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F47 - Brake Pedal Switch Locations [1][2]Brake Light Switch

J248 - Diesel Direct Fuel Injection (DFI) Engine Control Module (ECM)

J317 - Power Supply Relay (terminal 30, B+) Overview Of Position Of Relays

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J743 - Direct Shift Gearbox (DSG) Mechatronic Direct Shift Gearbox 02E (DSG) [1][2]Automatically Shifted Manual Transmission/Transaxle

SB5 - Fuse 5 (on fuse panel B) Position Of Fuses (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008Colors

SB10 - Fuse 10 (on fuse panel B) Position Of Fuses (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008Colors

SB22 - Fuse 22 (on fuse panel B) Position Of Fuses (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008Colors

T4y - 4-Pin Connector

T20e - 20-Pin Connector

T40 - 40-Pin Connector

T94 - 94-Pin Connector

(D92) - Connection (30 al) (in engine compartment wiring harness)

* - through November 2005
