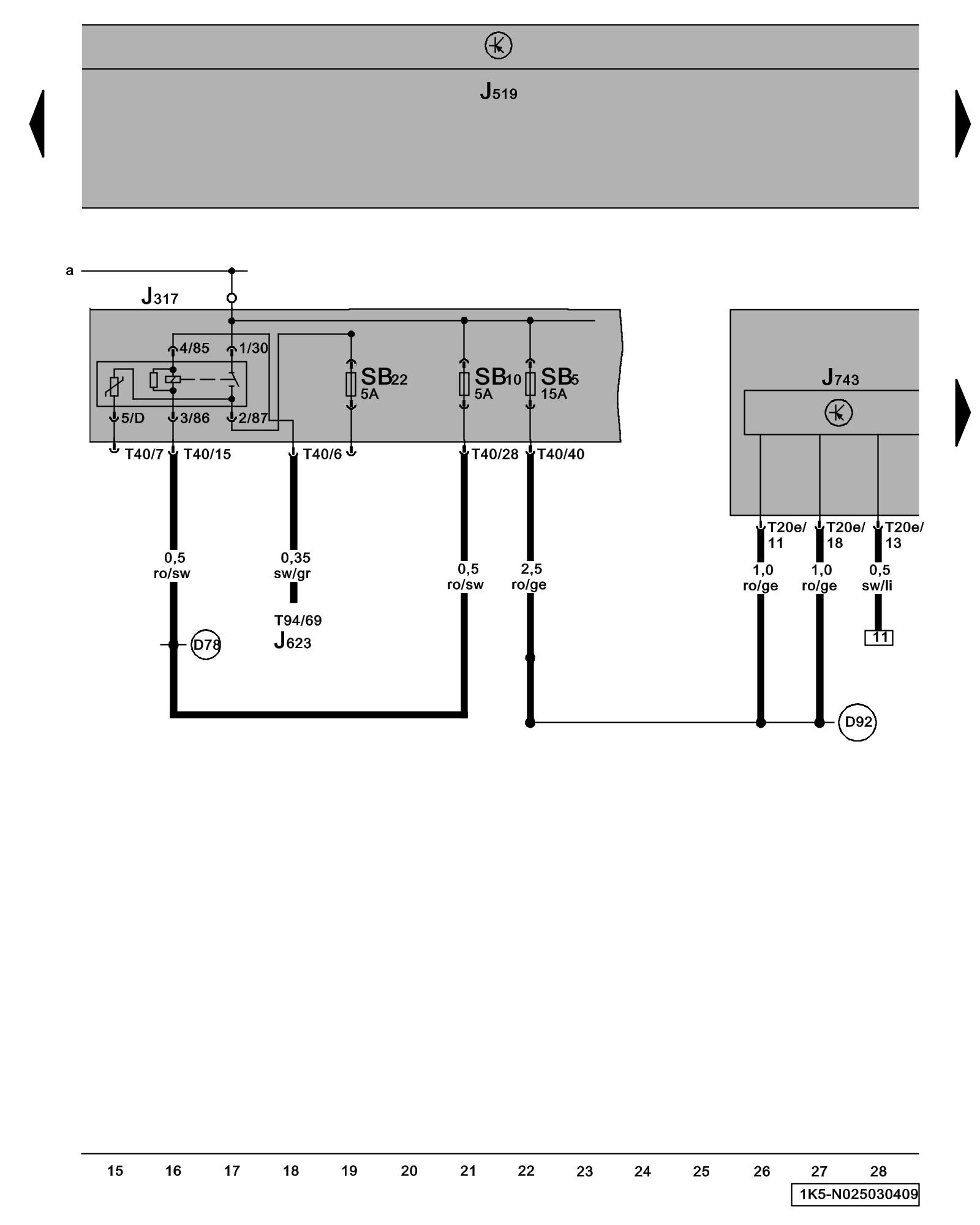

Diagram 25/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Power Supply Relay (terminal 30, B+), Direct Shift Gearbox (DSG) Mechatronic





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J317 - Power Supply Relay (terminal 30, B+) Overview Of Position Of Relays

J519 - Vehicle Electrical System Control Module Control Modules In Interior, From July 2007

J623 - Engine Control Module (ECM) Control Modules In Engine Compartment

J743 - Direct Shift Gearbox (DSG) Mechatronic Direct Shift Gearbox 02E (DSG)

SB5 - Fuse 5 (on fuse panel B) Position Of Fuses (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008Colors

SB10 - Fuse 10 (on fuse panel B) Position Of Fuses (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008Colors

SB22 - Fuse 22 (on fuse panel B) Position Of Fuses (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008 Overview Of Fuse Arrangements (SB) On Electronics Box, In Engine Compartment, Left, From Jan 2008Colors

T20e - 20-Pin Connector

T40 - 40-Pin Connector

T94 - 94-Pin Connector

(D78) - Plus Connection 1 (30a) (in engine compartment wiring harness)

(D92) - Connection (30 al) (in engine compartment wiring harness)

Previous Diagram 25/2 (Tracks 1-14)

Next Diagram 25/4 (Tracks 29-42)
