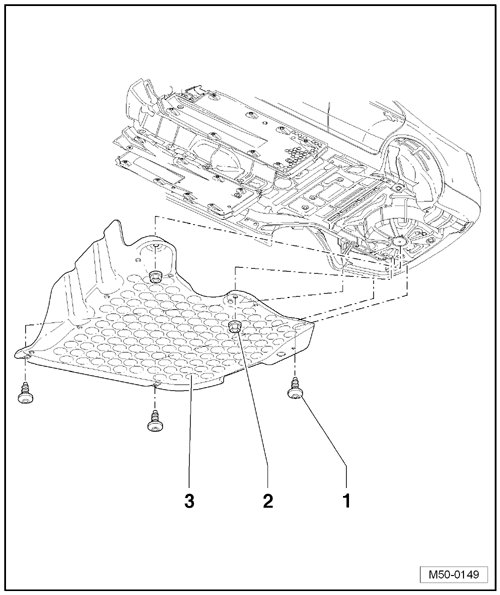

Rear Underbody Trim Assembly Overview

Rear Underbody Trim Assembly Overview

Special tools, testers and auxiliary items required

• Torque wrench (V.A.G 1783)





1 Screw

• Qty. 3

• 2 Nm

2 Rear Underbody Trim

• Only installed on the right side

• To remove, unscrew screws- 1 - and hex nuts - 3 -

3 Hex Nut

• Qty. 2

• 1.5 Nm
