Tow Sensor: Locations
Control Modules - Control Module Multi-Pin Connector Views - , from January 2008,
-J603- Vehicle Position Recognition Control Module

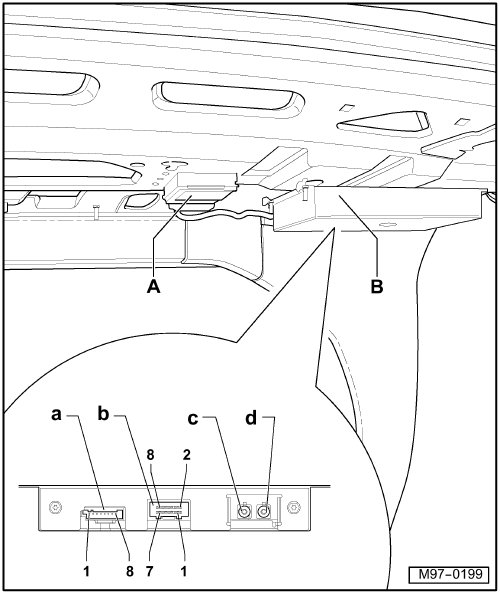

A - -J603-Vehicle Position Recognition Control Module. Location: In luggage compartment, below parcel shelf
Conector:
A - 8 Pin Connector T8h
-R146- Satellite Radio
B - -R146- Satellite Radio. Location: In luggage compartment, below parcel shelf
Conector:
B - 8 Pin Connector T8h
Connectors:
a - 8 Pin Connector, at harness (T8f)
b - 8 Pin Connector, at harness (T8g)
c - R170 -Satellite Antenna
d - R172 -Satellite Tuner Antenna
