Clamps and Exhaust Gas Temperature Sensor, Installed Position

Clamps and Exhaust Gas Temperature Sensor, Installed Position

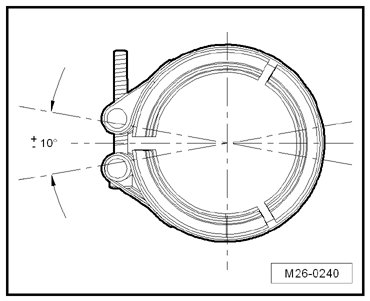

Clamp Installed Position between the Particulate Filter and Turbocharger





- Install the new clamp so the bolt faces down and the - +/- 10° - angle is maintained.

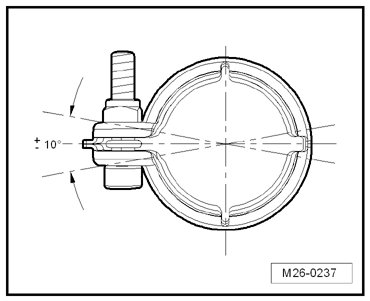

Clamp Installed Position between the Particulate Filter and Exhaust Gas Recirculation (EGR) Filter





- Install the new clamp so the bolt faces down and the - +/- 10° - angle is maintained.

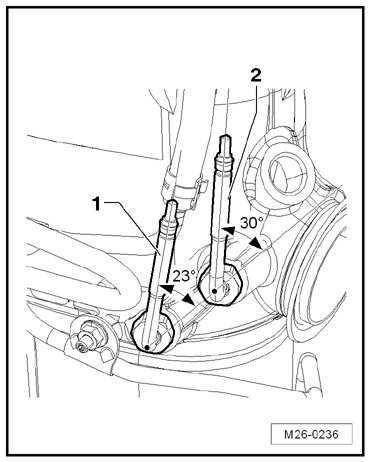

Exhaust Gas Temperature (EGT) Sensor Installed Position





- Install the EGT sensor so the angles are maintained:

• Exhaust Gas Temperature (EGT) sensor 3 (G495) - 1 -: angle - 23° -.

• Exhaust Gas Temperature (EGT) sensor 2 (G448) - 1 -: angle - 30° -.

Engine Code CJAA:

Installed Position: Clamp between the Particulate Filter and NOx Reduction Catalytic Converter





- Install the new clamp maintaining the - 45° +/- 10° - angle.
