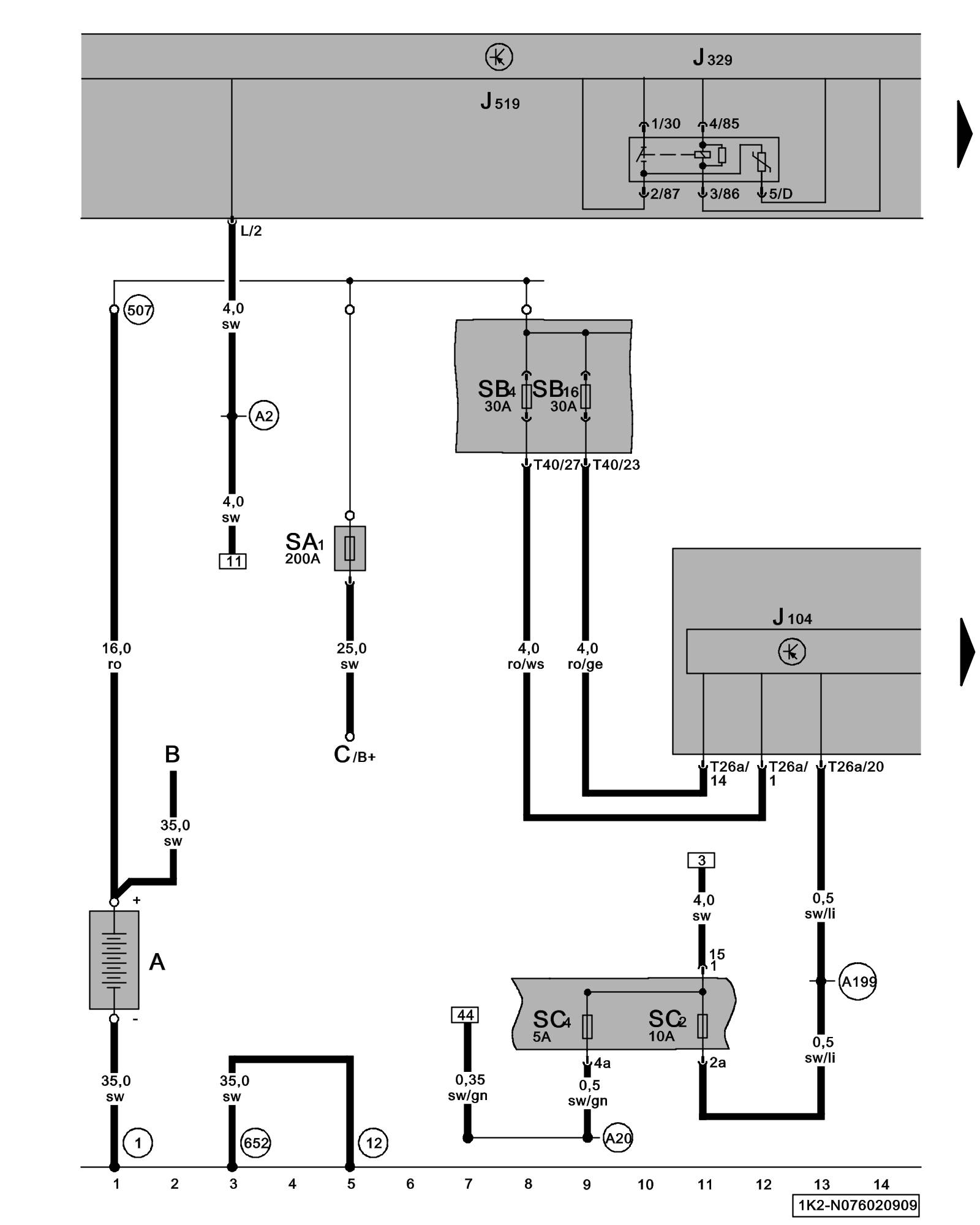

Diagram 76/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Battery, ABS Control Module, Power Supply Relay (terminal 15), Vehicle Electrical System Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator (GEN)

J104 - ABS Control Module Locations

J329 - Power Supply Relay (terminal 15) Locations

J519 - Vehicle Electrical System Control Module Locations Locations

SA1 - Fuse 1 (on fuse panel A)

SB4 - Fuse 4 (on fuse panel B)

SB16 - Fuse 16 (on fuse panel B)

SC2 - Fuse 2 (on fuse panel C) Locations

SC4 - Fuse 4 (on fuse panel C) Locations

T26a - 26-Pin Connector

T40 - 40-Pin Connector

(1) - Ground strap, battery to body

(12) - Ground Connection, in engine compartment, left

(507) - Threaded Connection (30) (on relay holder/battery)

(652) - Transmission/Engine Ground Connection

(A2) - Plus Connection (15) (in instrument panel wiring harness)

(A20) - Plus Connection (15a) (in instrument panel wiring harness)

(A199) - Plus Connection 4 (15a)(in instrument panel wiring harness)

Next Diagram 76/3 (Tracks 15-28)
