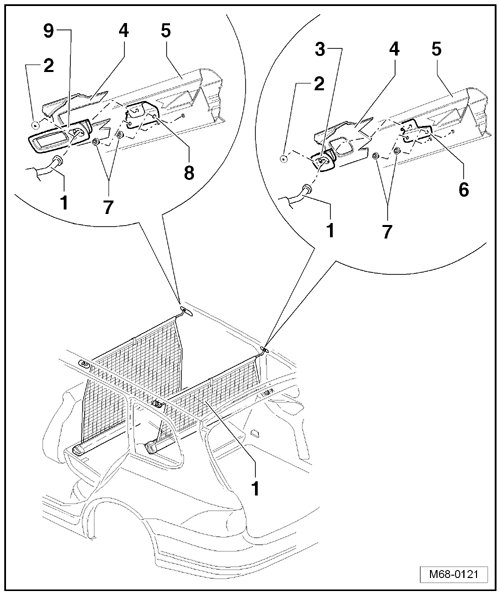

Screen Separator Wall Bracket with Panoramic Sunroof

Screen Separator Wall Bracket with Panoramic Sunroof






1 Screen Separator Wall

• Removing and installing, refer to => [ Screen Separator Wall ] Service and Repair

2 Bolt

• 2 Nm

3 Rear Lifting Eye Trim

4 Headliner

• Removing and installing, refer to => [ Molded Headliner ] Molded Headliner

5 Roof

6 Rear Screen Separator Wall Bracket

7 Bolt

• 4.5 Nm

8 Front Screen Separator Wall Bracket

9 Front Lifting Eye Trim
