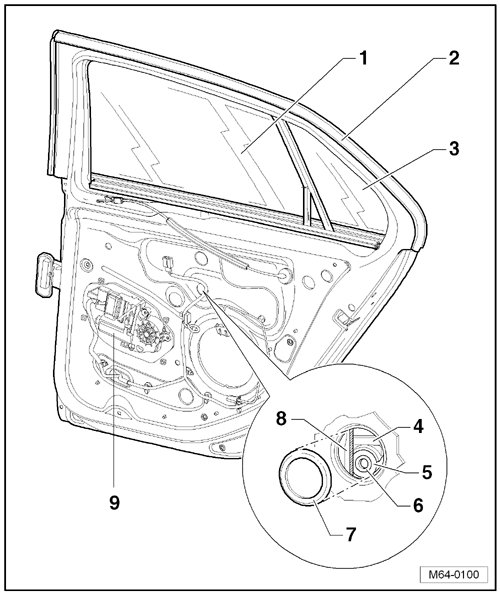

Rear Door Window Assembly Overview

Rear Door Window Assembly Overview






1 Door Window

• Removing and installing. Refer to => [ Door Window ] Door Window

2 Window Guide

• Component of fixed door window.

• Removing and installing. Refer to => [ Fixed Door Window with Window Guide ] Fixed Door Window With Window Guide

3 Fixed Door Window

• Component of window guide.

• Removing and installing => [ Fixed Door Window with Window Guide ] Fixed Door Window With Window Guide

4 Window Regulator Guide

5 Spreader Plug

• Always replace when performing assembly work at door window.

6 Spreader Pin

• Always replace when performing assembly work at door window.

7 Cover Cap

8 Window Regulator

• Removing and installing. Refer to => [ Window Regulator ] Window Regulator

9 Window Regulator Motor

• Removing and installing. Refer to => [ Window Regulator Motor ] Window Regulator Motor
