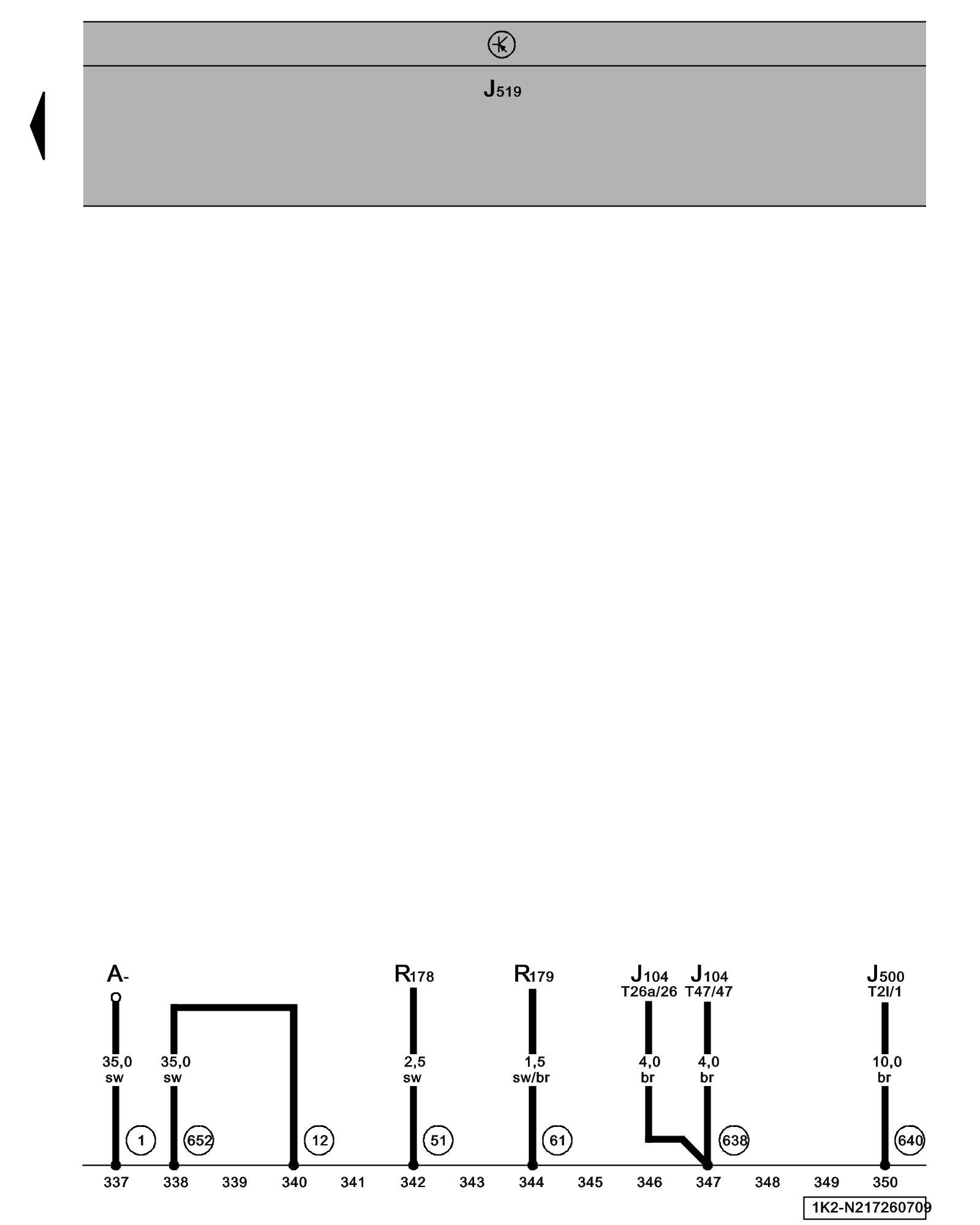

Diagram 217/26 (Tracks 337-350)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground Connections (in wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

J104 - ABS Control Module Locations

J500 - Power Steering Control Module Locations

J519 - Vehicle Electrical System Control Module Locations Locations

R178 - FM Frequency Filter (in negative wire) Antenna Systems Overview

R179 - FM Frequency Filter (in positive wire) Antenna Systems Overview

T2l - Double Connector

T26a - 26-Pin Connector

T47 - 47-Pin Connector

(1) - Ground strap, battery to body

(12) - Ground Connection (in engine compartment, left)

(51) - Ground Connection (in luggage compartment, right)

(61) - Ground Connection (on rear left C-pillar)

(638) - Ground Connection (on right A-pillar)

(640) - Ground Connection (in engine compartment, left)

(652) - Transmission/Engine Ground Connection

Previous Diagram 217/25 (Tracks 323-336)
