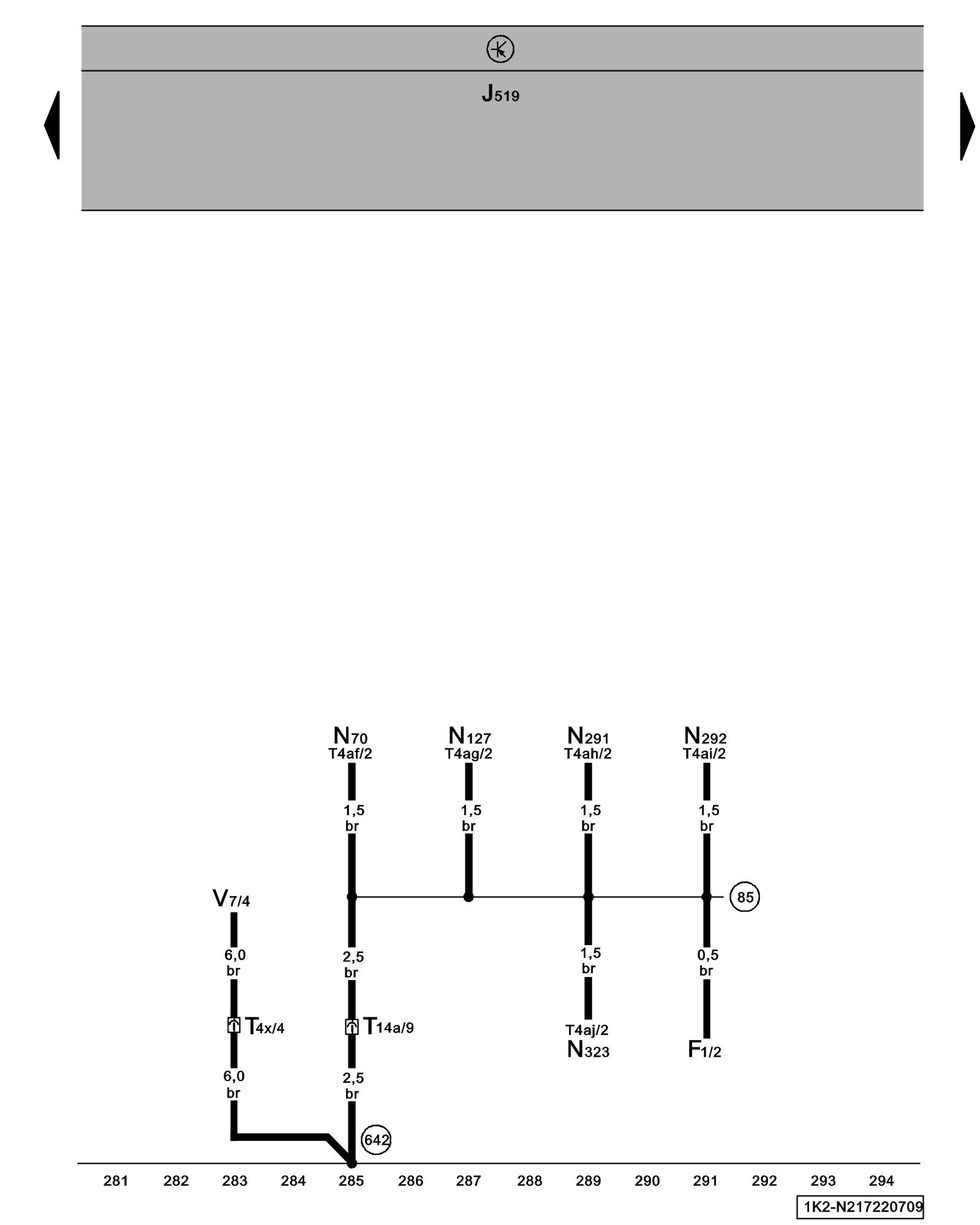

Diagram 217/22 (Tracks 281-294)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground Connections (in wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F1 - Oil Pressure Switch Locations

J519 - Vehicle Electrical System Control Module Locations Locations

N70 - Ignition Coil 1 with Power Output Stage Locations

N127 - Ignition Coil 2 with Power Output Stage Locations

N291 - Ignition Coil 3 with Power Output Stage Locations

N292 - Ignition Coil 4 with Power Output Stage Locations

N323 - Ignition Coil 5 with Power Output Stage Locations

T4x - 4-Pin Connector

T4af - 4-Pin Connector

T4ag - 4-Pin Connector

T4ah - 4-Pin Connector

T4ai - 4-Pin Connector

T4aj - 4-Pin Connector

T14a - 14-Pin Connector

V7 - Coolant Fan Locations

(85) - Ground Connection 1 (in engine compartment wiring harness)


- Component Location: 2.5L models: In engine compartment wiring harness between N291 - Ignition Coil 3 with Power Output Stage and N292 - Ignition Coil 4 with Power Output Stage


- Component Location: 2.0L models: In main wiring harness between 15 - Ground Connection (on cylinder head) and T14a 14-Pin Connector, in engine compartment wiring harness

(642) - Ground Connection (on electronic fan control)
