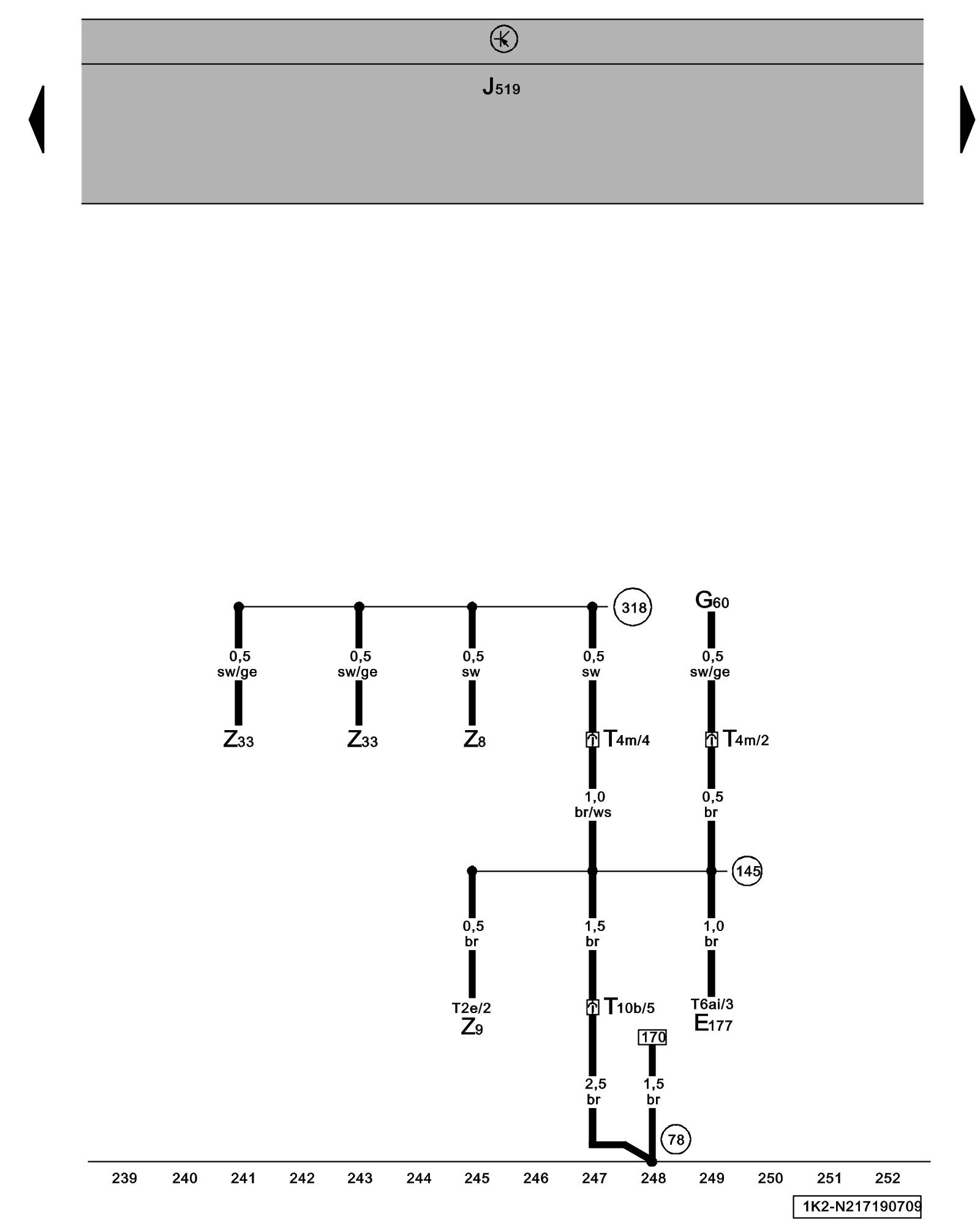

Diagram 217/19 (Tracks 239-252)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground Connections (in wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E177 - Front Passenger's Seat Lumbar Support Adjustment Switch

G60 - Front Passenger's Heated Seat Temperature Sensor

J519 - Vehicle Electrical System Control Module Locations Locations

T2e - Double Connector

T4m - 4-Pin Connector

T6ai - 6-Pin Connector

T10b - 10-Pin Connector

Z8 - Front Passenger's Seat Heating Element

Z9 - Front Passenger's Backrest Heating Element

Z33 - Front Passenger's Seat Side Bolster Heater

(78) - Ground Connection (on right lower B-pillar)

(145) - Ground Connection 3 (in heated seats wiring harness)


- Component Location: In heated seats wiring harness between J774 - Front Heated Seats Control Module and E25 - Front Passenger's Safety Belt Switch

(318) - Ground Connection 4 (in heated seats wiring harness)


- Component Location: In heated seats wiring harness in seat
