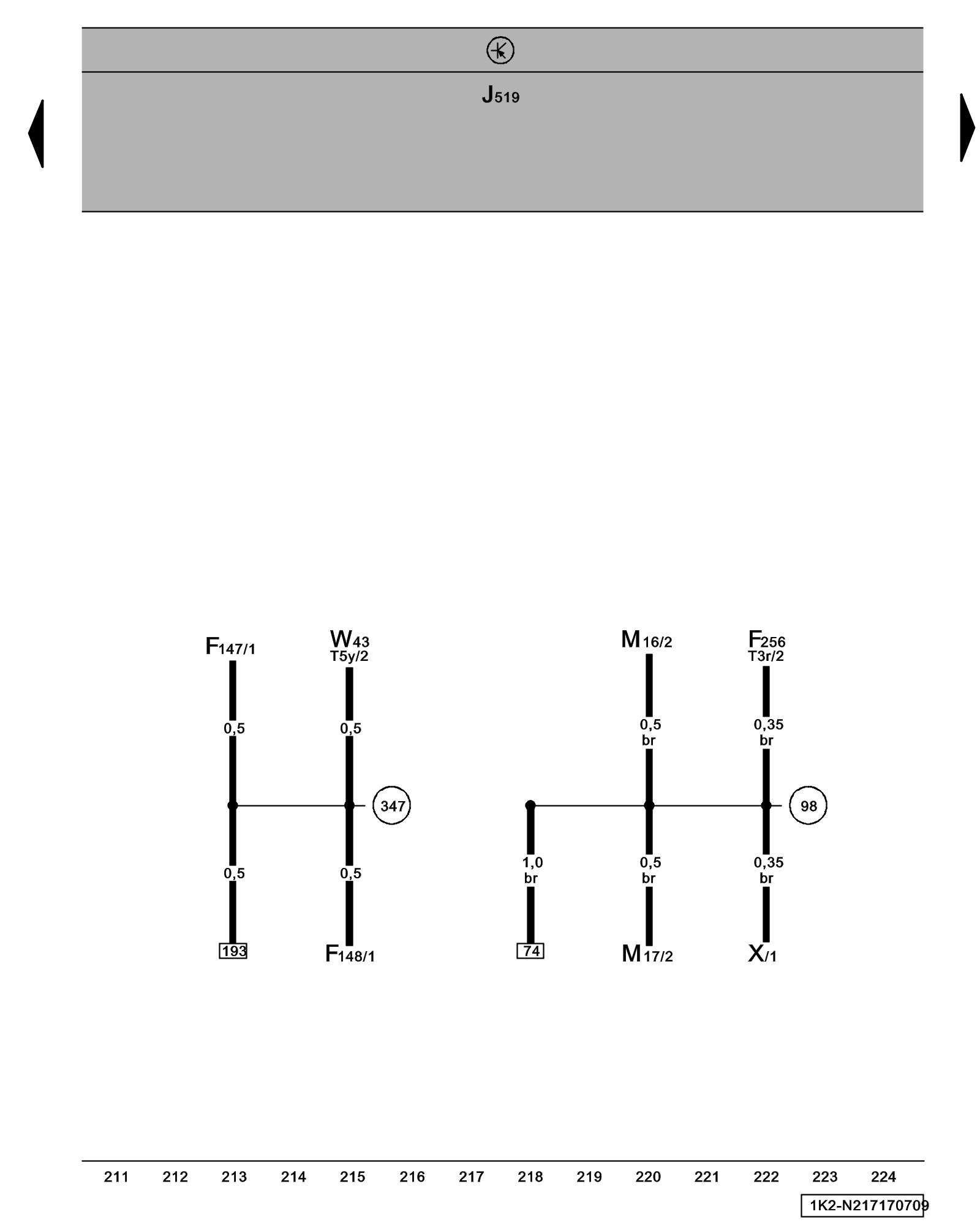

Diagram 217/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground Connections (in wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F147 - Driver Vanity Mirror Lamp Contact Switch

F148 - Front Passenger Vanity Mirror Lamp Contact Switch

F256 - Rear Lid Lock Unit Central Locking / Anti-Theft Systems

J519 - Vehicle Electrical System Control Module Locations Locations

M16 - Left Back-Up Lamp

M17 - Right Back-Up Lamp

T3r - 3-Pin Connector

T5y - 5-Pin Connector

W43 - Rear Interior Light

X - License Plate Light

(98) - Ground Connection (in rear lid wiring harness)


- Component Location: In rear lid wiring harness between X - License Plate Light and T6 6-Pin Connector, rear lid

(347) - Ground Connection (in roof wiring harness)


- Component Location: In shielding (in roof wiring harness)
