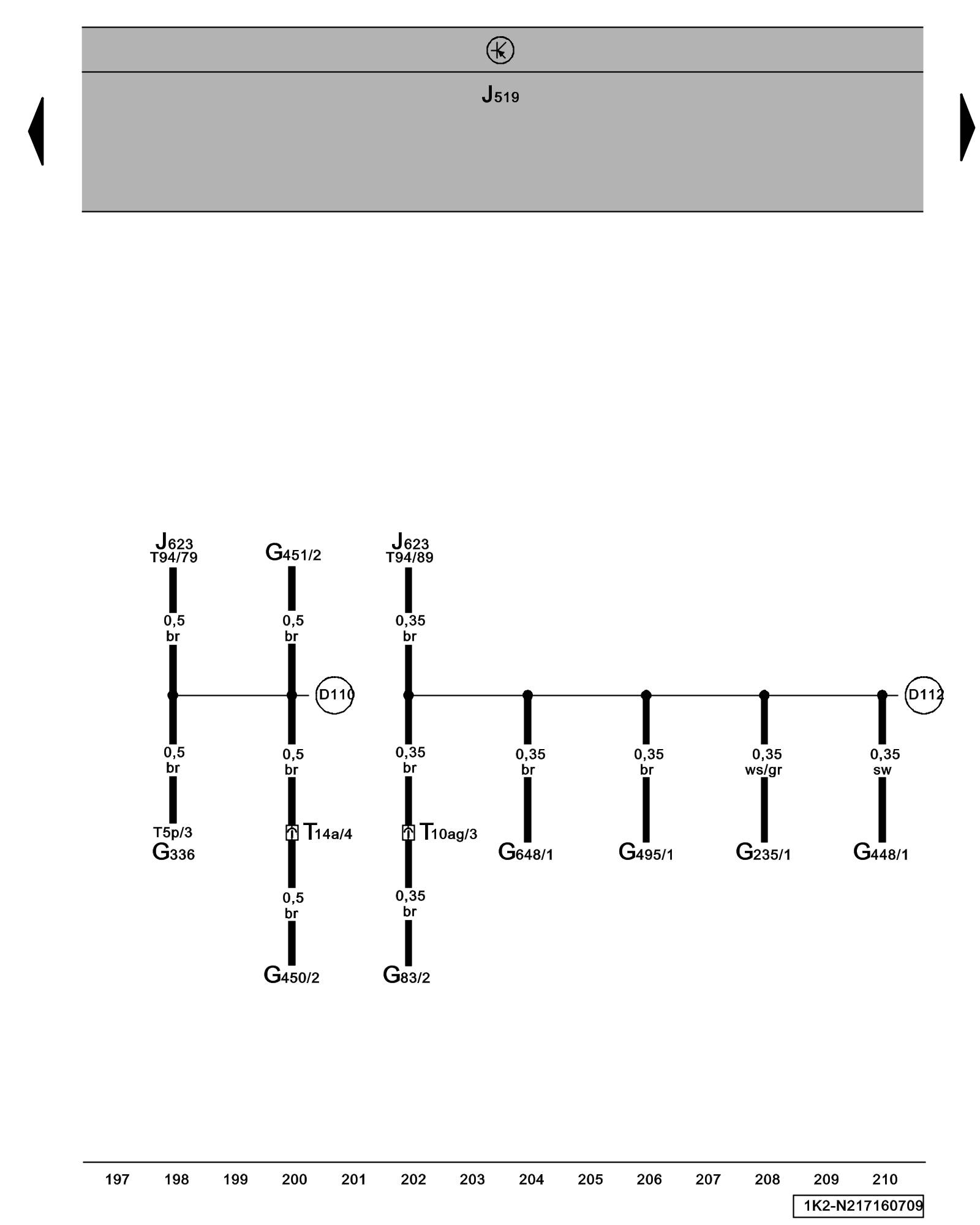

Diagram 217/16 (Tracks 197-210)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground Connections (in wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G83 - Engine Coolant Temperature (ECT) Sensor (on Radiator) Locations

G235 - Exhaust Gas Temperature (EGT) Sensor 1

G336 - Intake Manifold Runner Position Sensor 2.0L BPY, CCTA and CBFA

G448 - Bank 1 Exhaust Gas Temperature (EGT) Sensor 2 Locations

G450 - Exhaust Pressure Sensor 1 Locations

G451 - Exhaust Pressure Sensor 2 Locations

G495 - Exhaust Gas Temperature (EGT) Sensor 3 Locations

G648 - Exhaust Gas Temperature (EGT) Sensor 4 Locations

J519 - Vehicle Electrical System Control Module Locations Locations

J623 - Engine Control Module (ECM) Locations

T5p - 5-Pin Connector

T10ag - 10-Pin Connector

T14a - 14-Pin Connector

T94 - 94-Pin Connector

(D110) - Connection 8 (in engine compartment wiring harness)


- Component Location: Between main wiring harness and J623 - Engine Control Module (ECM)

(D112) - Connection 10 (in engine compartment wiring harness)


- Component Location: Between main wiring harness and J623 - Engine Control Module (ECM)
