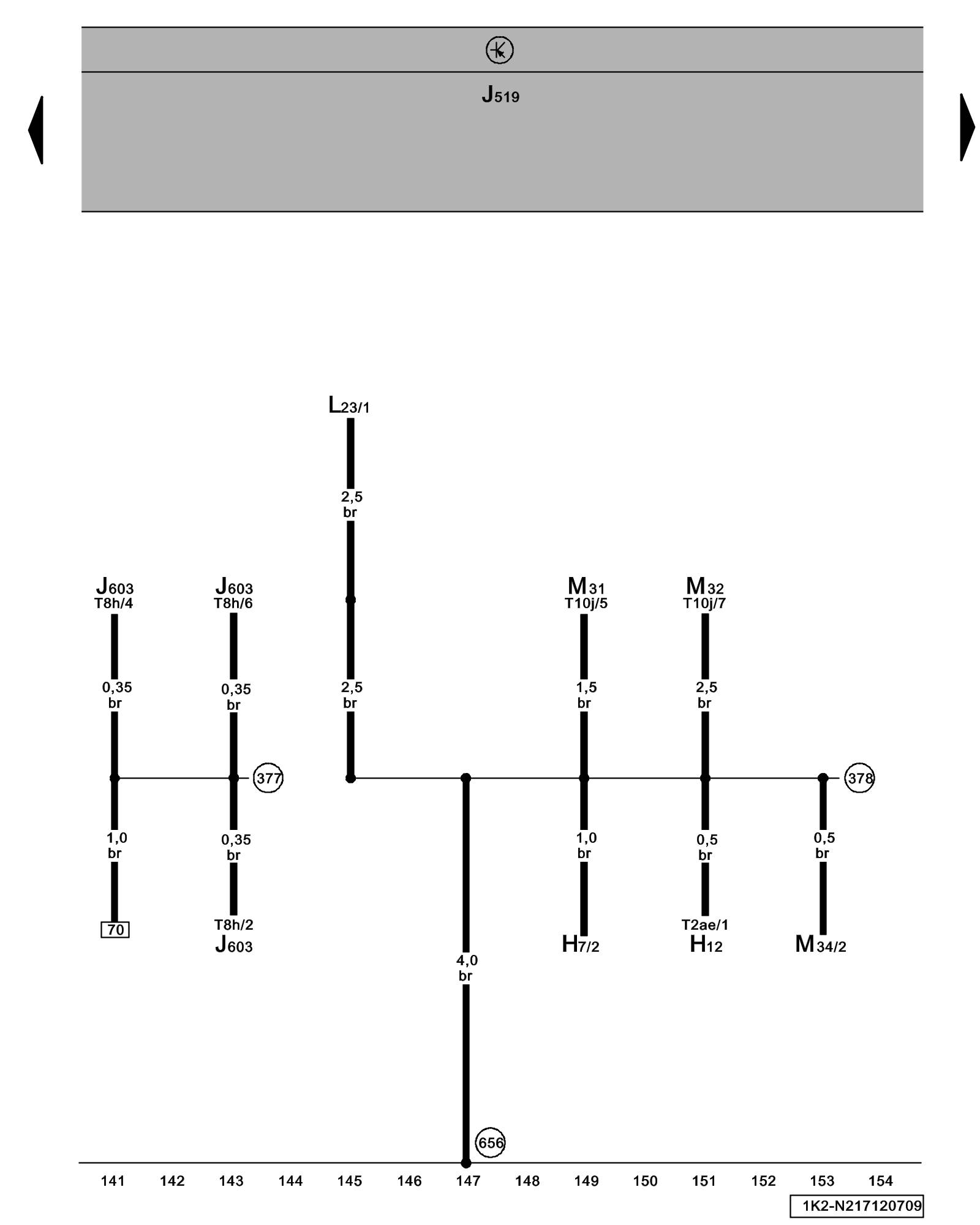

Diagram 217/12 (Tracks 141-154)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground Connections (in wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

H7 - Low Tone Horn Locations

H12 - Alarm Horn Central Locking / Anti-Theft Systems

J519 - Vehicle Electrical System Control Module Locations Locations

J603 - Vehicle Position Recognition Control Module

L23 - Right Front Fog Lamp

M31 - Right Low Beam Headlamp

M32 - Right High Beam Headlamp

M34 - Right Front Side Marker Lamp

T2ae - Double Connector

T8h - 8-Pin Connector

T10j - 10-Pin Connector

(377) - Ground Connection 12 (in main wiring harness)


- Component Location: Between main wiring harness and J603 - Vehicle Position Recognition Control Module

(378) - Ground Connection 13 (in main wiring harness)


- Component Location: In main wiring harness between 656 - Ground Connection (on right headlamp) and G32 - Engine Coolant Level (ECL) Sensor

(656) - Ground Connection (on right headlamp)

Previous Diagram 217/11 (Tracks 127-140)

Next Diagram 217/13 (Tracks 155-168)
