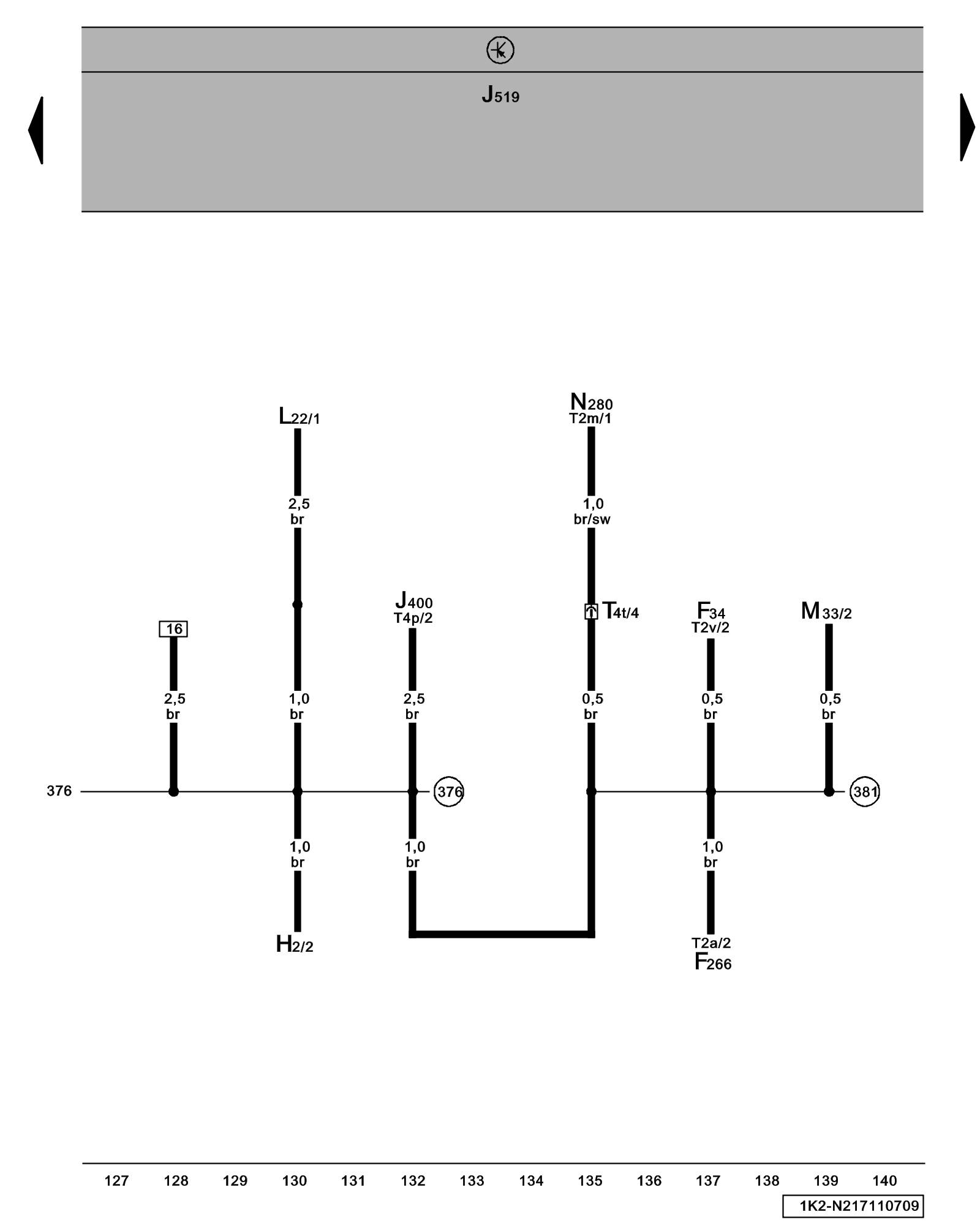

Diagram 217/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground Connections (in wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F34 - Brake Fluid Level Warning Switch Locations

F266 - Front Hood Switch Central Locking / Anti-Theft Systems

H2 - High Tone Horn Locations

J400 - Wiper Motor Control Module

J519 - Vehicle Electrical System Control Module Locations Locations

L22 - Left Front Fog Lamp

M33 - Left Front Side Marker Lamp

N280 - A/C Compressor Regulator Valve Locations

T2a - Double Connector

T2m - Double Connector

T2v - Double Connector

T4p - 4-Pin Connector

T4t - 4-Pin Connector

(376) - Ground Connection 11 (in main wiring harness)


- Component Location: In main wiring harness between power supply (SA) and power supply (SB)

(381) - Ground Connection 16 (in main wiring harness)


- Component Location: In main wiring harness between power supply (SA) and power supply (SB)
