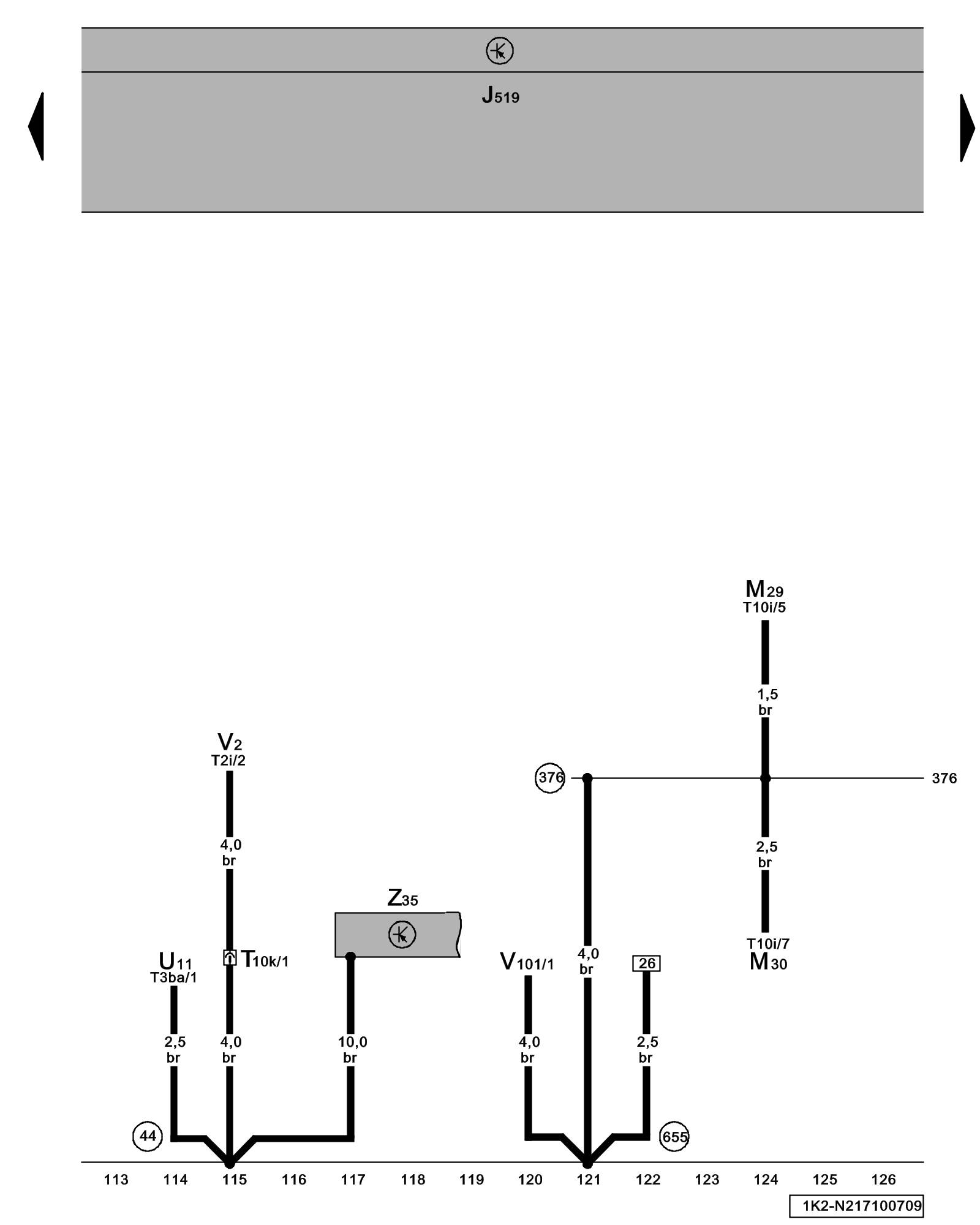

Diagram 217/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground Connections (in wiring harness)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Locations Locations

M29 - Left Low Beam Headlamp

M30 - Left High Beam Headlamp

T2i - Double Connector

T3ba - 3-Pin Connector

T10i - 10-Pin Connector

T10k - 10-Pin Connector

U11 - Interior Socket, 230V, 110V

V2 - Fresh Air Blower Climatic (Manual Climate Control) Heating and A/C System Components Overview

V101 - Secondary Air Injection (AIR) Pump Motor Locations

Z35 - Auxiliary Air Heater Heating Element Climatic (Manual Climate Control) Heating and A/C System Components Overview

(44) - Ground Connection (on left lower A-pillar)

(376) - Ground Connection 11 (in main wiring harness)


- Component Location: In main wiring harness between power supply (SA) and power supply (SB)

(655) - Ground Connection (on left headlamp)

Previous Diagram 217/9 (Tracks 99-112)

Next Diagram 217/11 (Tracks 127-140)
