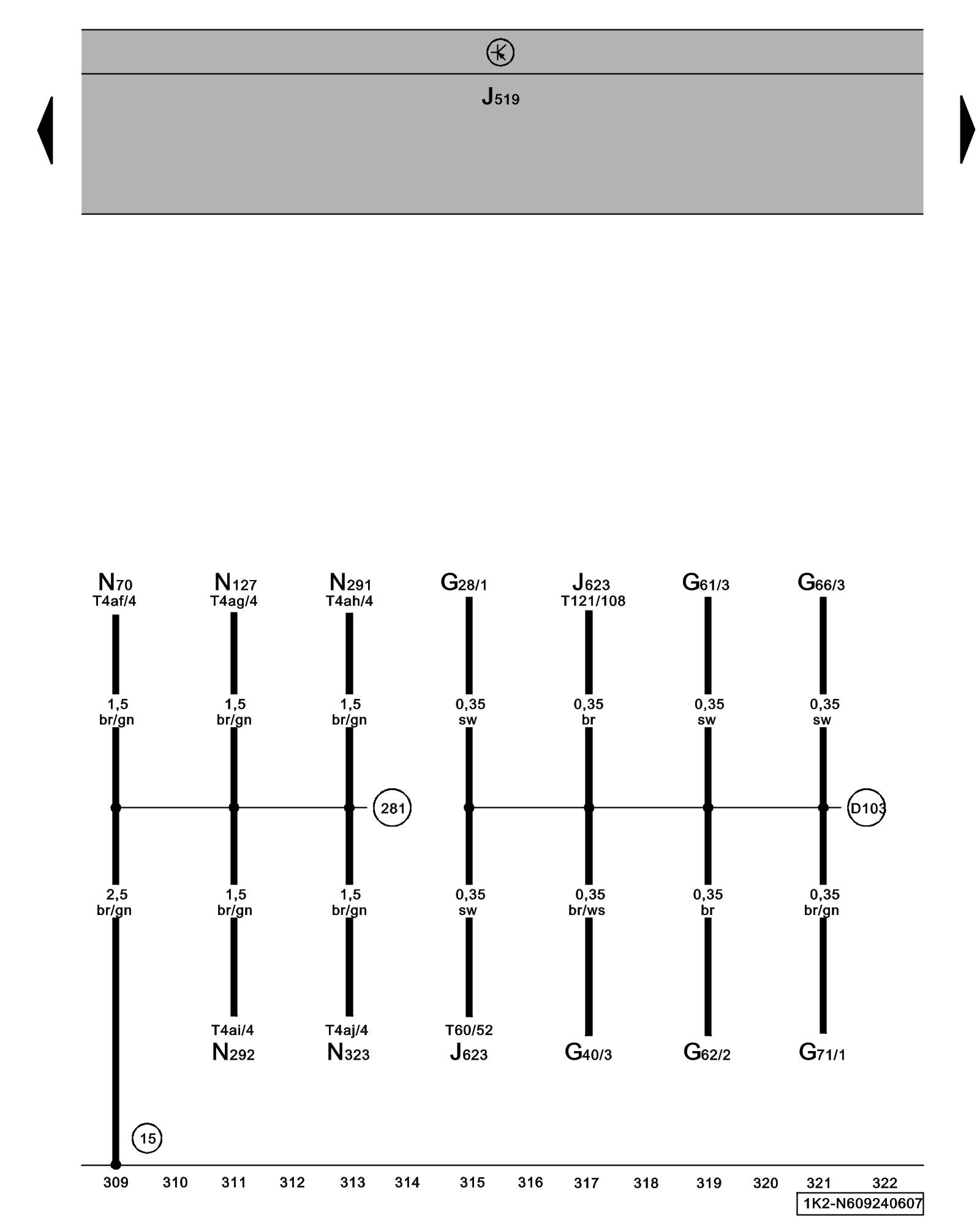

Diagram 609/24 (Tracks 309-322)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G28 - Engine Speed (RPM) Sensor Locations

G40 - Camshaft Position (CMP) Sensor Locations

G61 - Knock Sensor (KS) 1 Locations

G62 - Engine Coolant Temperature (ECT) Sensor Locations

G66 - Knock Sensor (KS) 2 Locations

G71 - Manifold Absolute Pressure (MAP) Sensor

J623 - Engine Control Module (ECM)

J519 - Vehicle Electrical System Control Module Locations

N70 - Ignition Coil 1 with Power Output Stage Locations

N127 - Ignition Coil 2 with Power Output Stage Locations

N291 - Ignition Coil 3 with Power Output Stage Locations

N292 - Ignition Coil 4 with Power Output Stage Locations

N323 - Ignition Coil 5 with Power Output Stage Locations

T4af - 4-Pin Connector

T4ag - 4-Pin Connector

T4ah - 4-Pin Connector

T4ai - 4-Pin Connector

T4aj - 4-Pin Connector

T60 - 60-Pin Connector

T121 - 121-Pin Connector

(15) - Ground Connection (on cylinder head) Locations

(281) - Ground Connection 1 (in engine wiring harness)


- Location: vehicles 2,5 L: In engine compartment wiring harness between wiring circuits for N292 - Ignition Coil 4 with Power Output Stage and N323 - Ignition Coil 5 with Power Output Stage


- Location: vehicle 2,0 L: In engine wiring harness between wiring circuits for N70 - Ignition Coil 1 with Power Output Stage and N127 - Ignition Coil 2 with Power Output Stage

(D103) - Connection 3 (in engine compartment wiring harness)


- Location: In wiring circuit between engine compartment wiring harness and J623 - Engine Control Module (ECM)
