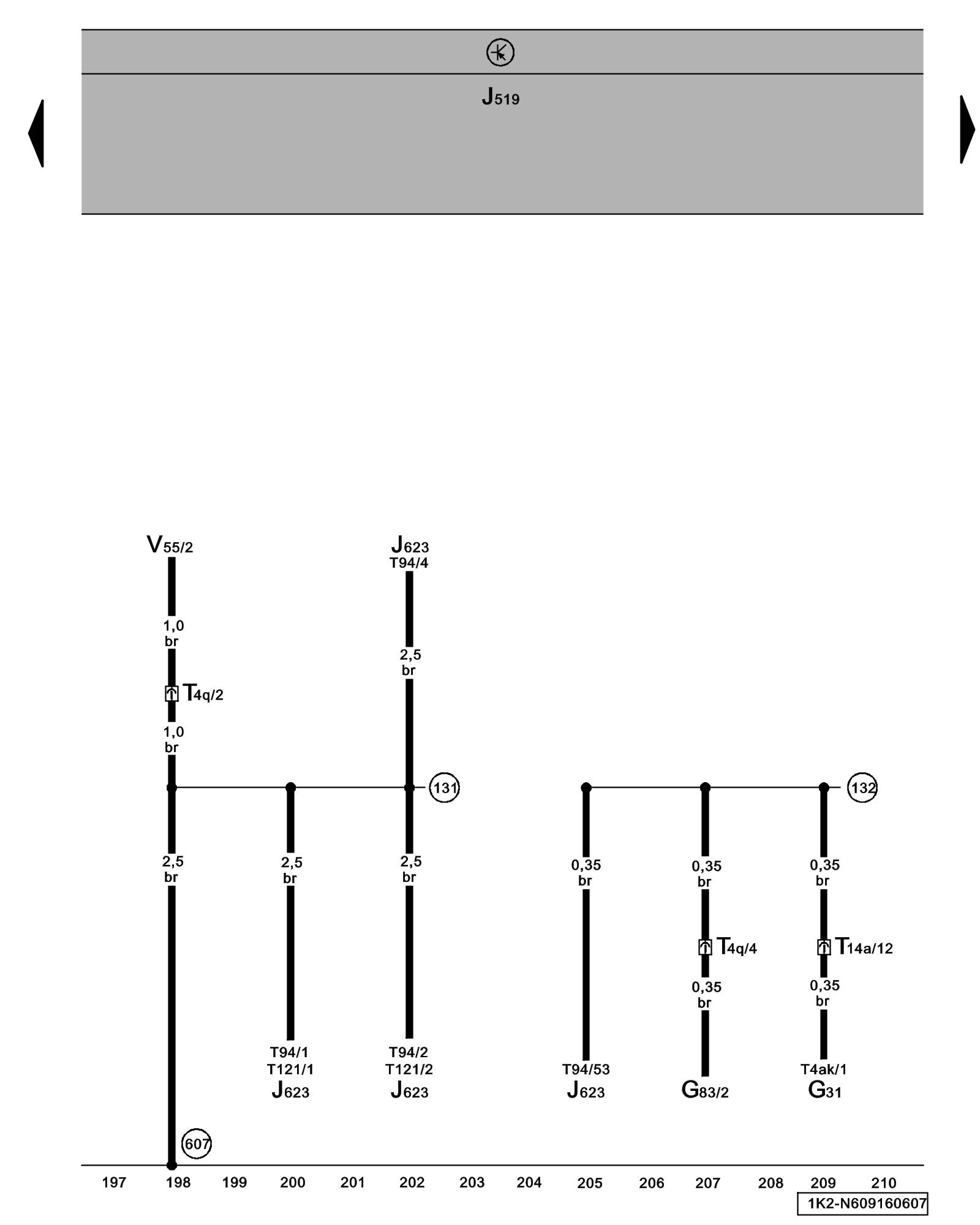

Diagram 609/16 (Tracks 197-210)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G31 - Charge Air Pressure Sensor Locations

G83 - Engine Coolant Temperature (ECT) Sensor (on Radiator) Locations

J519 - Vehicle Electrical System Control Module Locations

J623 - Engine Control Module (ECM)

T4q - 4-Pin Connector

T4ak - 4-Pin Connector

T14a - 14-Pin Connector

T94 - 94-Pin Connector

T121 - 121-Pin Connector

V55 - Recirculation Pump

(131) - Ground Connection 2 (in engine compartment wiring harness)


- Location: In wiring circuit between engine compartment wiring harness and J623 - Engine Control Module (ECM)

(132) - Ground Connection 3 (in engine compartment wiring harness)


- Location: in vehicle 2,0L only, In main wiring harness between wiring circuits for J623 - Engine Control Module (ECM) and 607 - Ground Connection (in left plenum chamber)

(607) - Ground Connection (in left plenum chamber) Locations
