Diagram 173/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground splices





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

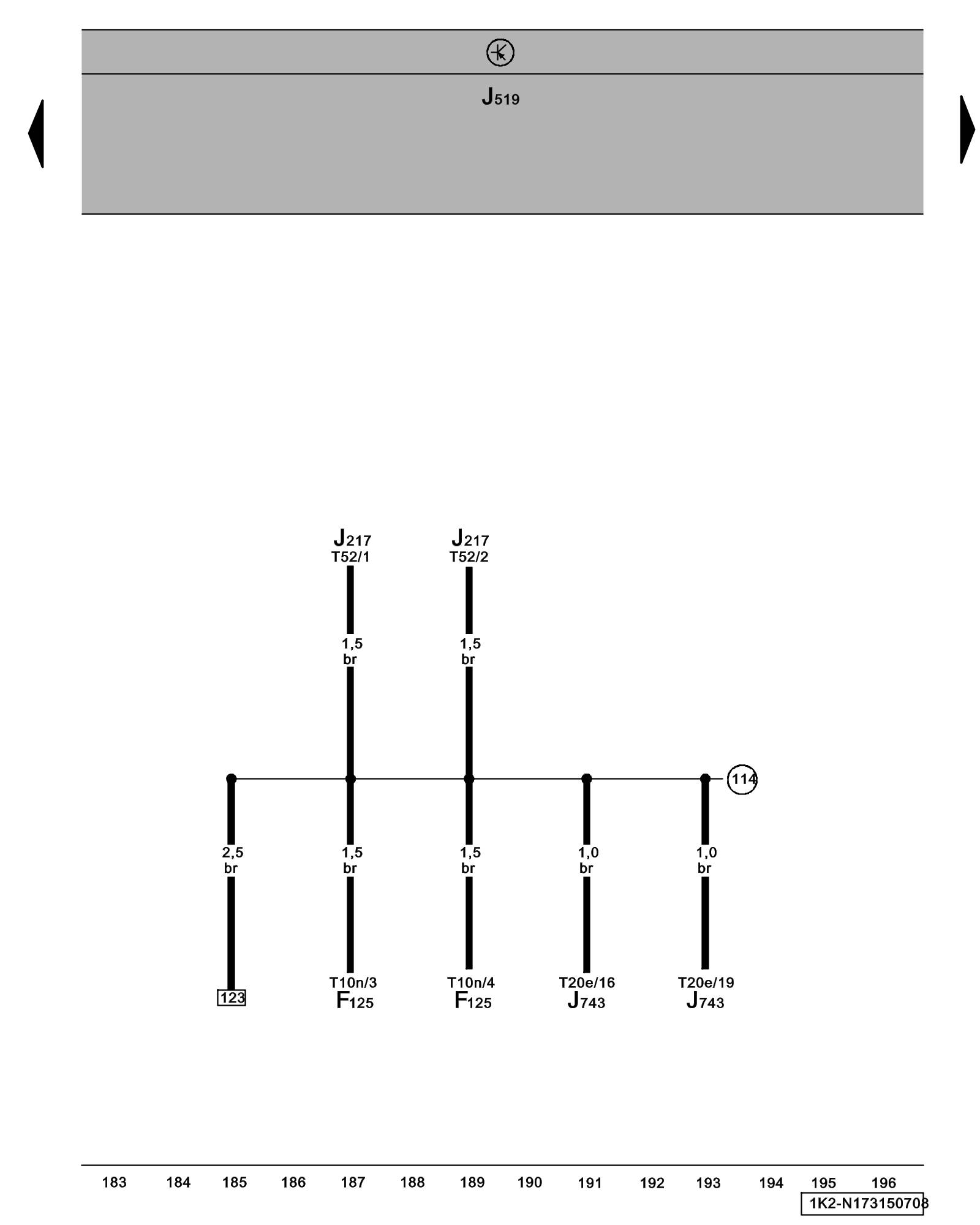

F125 - Multi-Function Transmission Range (TR) Switch Locations

J217 - Transmission Control Module (TCM) Locations

J743 - Direct Shift Gearbox (DSG) Mechatronic

J519 - Vehicle Electrical System Control Module Locations Locations

T10n - 10-Pin Connector

T20e - 20-Pin Connector

T52 - 52-Pin Connector

(114) - Ground Connection (in automatic transmission wiring harness)


- Location: in vehicle 2,5 L: In wiring circuit between main wiring harness and F125 - Multi-Function Transmission Range (TR) Switch


- Location: in vehicle 2,0 L: In automatic transmission wiring harness between wiring circuits for J743 - Transmission Control Module (TCM) and T4q - connection for recirculation pump harness

Previous Diagram 173/14 (Tracks 169-182)

Next Diagram 173/16 (Tracks 197-210)
