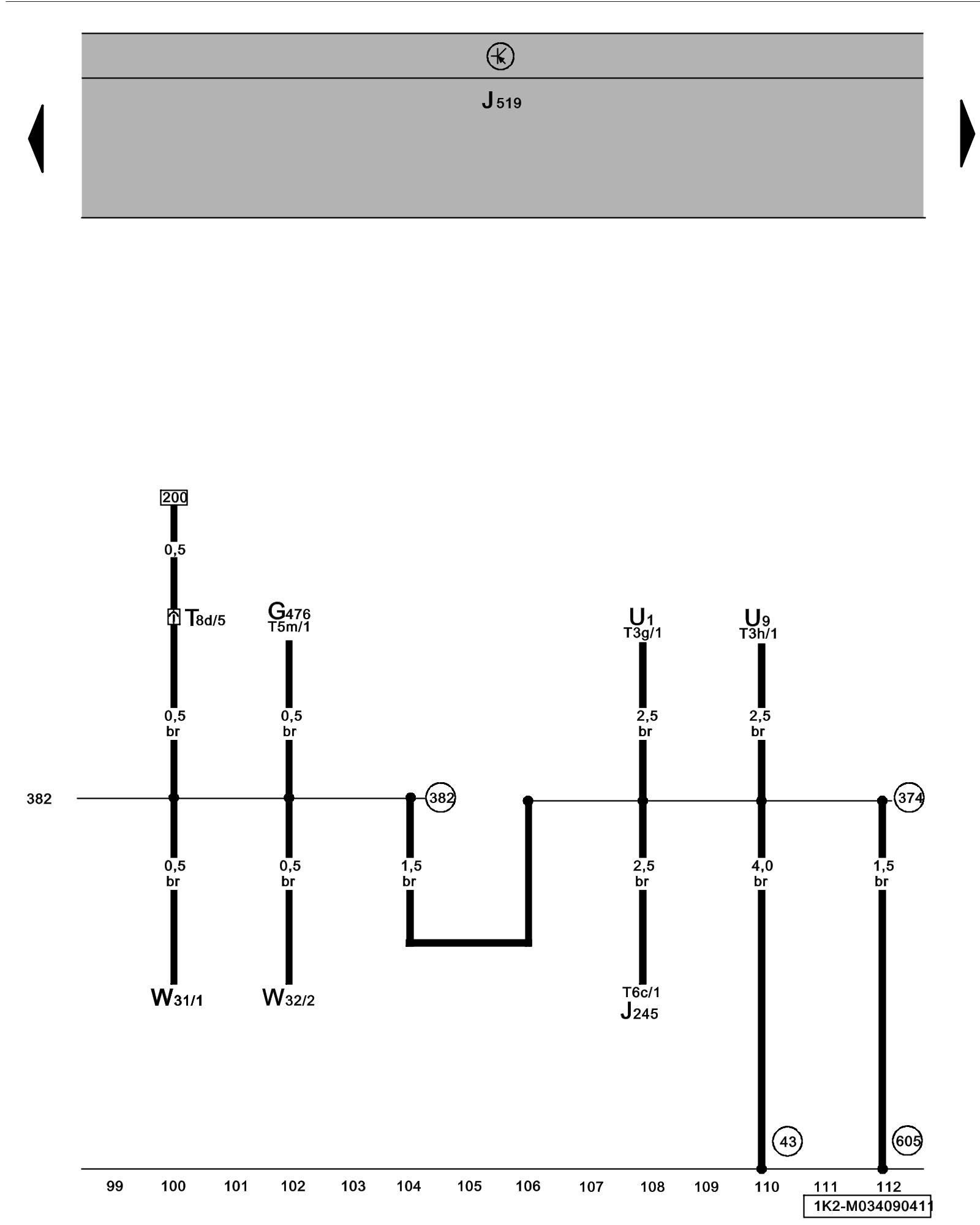

Diagram 34/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground Connections





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G476 - Clutch Position Sensor

J245 - Power Sunroof Control Module Sunroof With Glass Panel Assembly Overview

J519 - Vehicle Electrical System Control Module Locations Locations

T3g - 3-Pin Connector

T3h - 3-Pin Connector

T5m - 5-Pin Connector

T6c - 6-Pin Connector

T8d - 8-Pin Connector

U1 - Cigarette Lighter

U9 - Rear Cigarette Lighter

W31 - Left Front Entry Light

W32 - Right Front Entry Light

(43) - Ground Connection, on right lower A-pillar

(374) - Ground Connection 9 (in main wiring harness)

(382) - Ground Connection 17 (in main wiring harness)

(605) - Ground Connection (on upper steering column)
