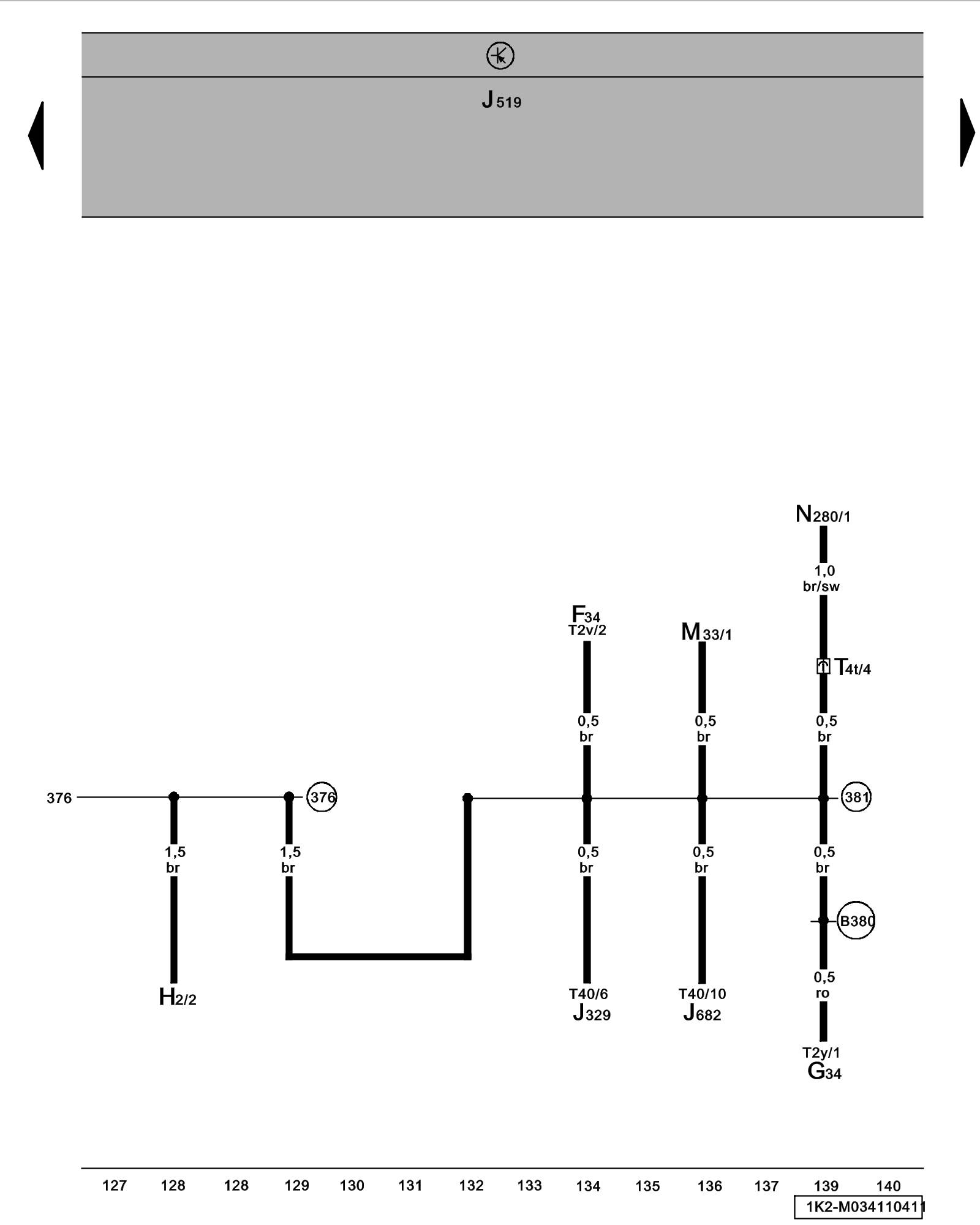

Diagram 34/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground Connections





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F34 - Brake Fluid Level Warning Switch Locations

G34 - Left Front Brake Pad Wear Sensor Locations

H2 - High Tone Horn Locations

J329 - Power Supply Relay (terminal 15) Locations

J519 - Vehicle Electrical System Control Module Locations Locations

J682 - Power Supply Relay (terminal 50) Locations

M33 - Left Front Side Marker Lamp

N280 - A/C Compressor Regulator Valve Locations

T2v - Double Connector

T2y - Double Connector

T4t - 4-Pin Connector

T40 - 40-Pin Connector

(376) - Ground Connection 11 (in main wiring harness)

(381) - Ground Connection 16 (in main wiring harness)

(B380) - Brake Wear Indicator Connection 2 (in main wiring harness)

Previous Diagram 34/10 (Tracks 113-126)

Next Diagram 34/12 (Tracks 141-154)
