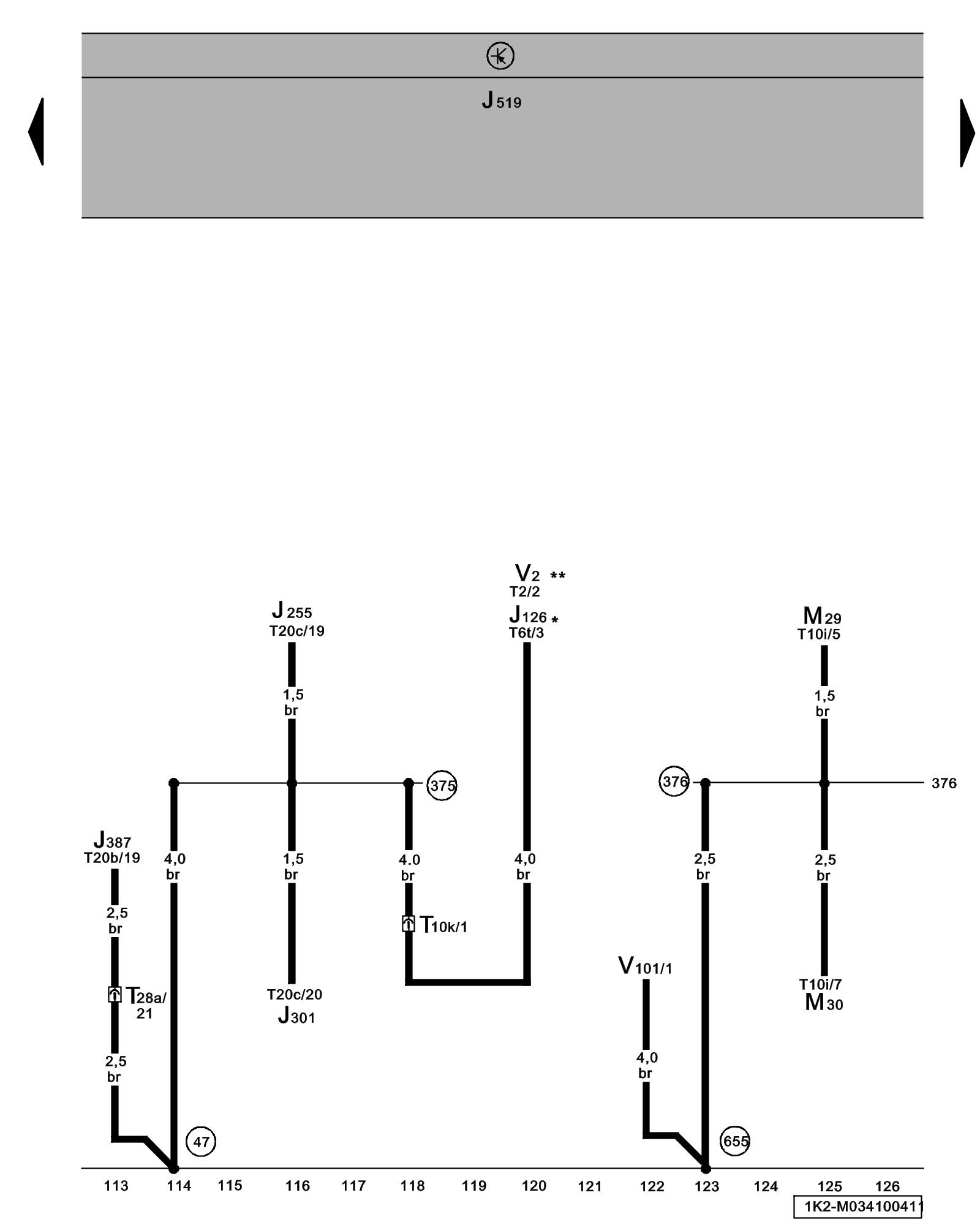

Diagram 34/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Ground Connections





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J126 - Fresh Air Blower Control Module Climatronic (Automatic Climate Control) Heating and A/C Components Overview

J255 - Climatronic Control Module Climatronic (Automatic Climate Control) Heating and A/C Components Overview

J301 - A/C Control Module Climatic (Manual Climate Control) Heating and A/C System Components Overview

J387 - Front Passenger's Door Control Module Locations Central Locking / Anti-Theft Systems

J519 - Vehicle Electrical System Control Module Locations Locations

M29 - Left Low Beam Lamp

M30 - Left High Beam Lamp

T2 - Double Connector

T6t - 6-Pin Connector

T10i - 10-Pin Connector

T10k - 10-Pin Connector

T20b - 20-Pin Connector

T20c - 20-Pin Connector

T28a - 28-Pin Connector

V2 - Fresh Air Blower Climatic (Manual Climate Control) Heating and A/C System Components Overview

V101 - Secondary Air Injection (AIR) Pump Motor Locations

(47) - Ground Connection (in front right footwell)

(375) - Ground Connection 10 (in main wiring harness)

(376) - Ground Connection 11 (in main wiring harness)

(655) - Ground Connection (on left headlamp)

* - Models with Climatronic

** - Models with Climatic

Previous Diagram 34/9 (Tracks 99-112)

Next Diagram 34/11 (Tracks 127-140)
