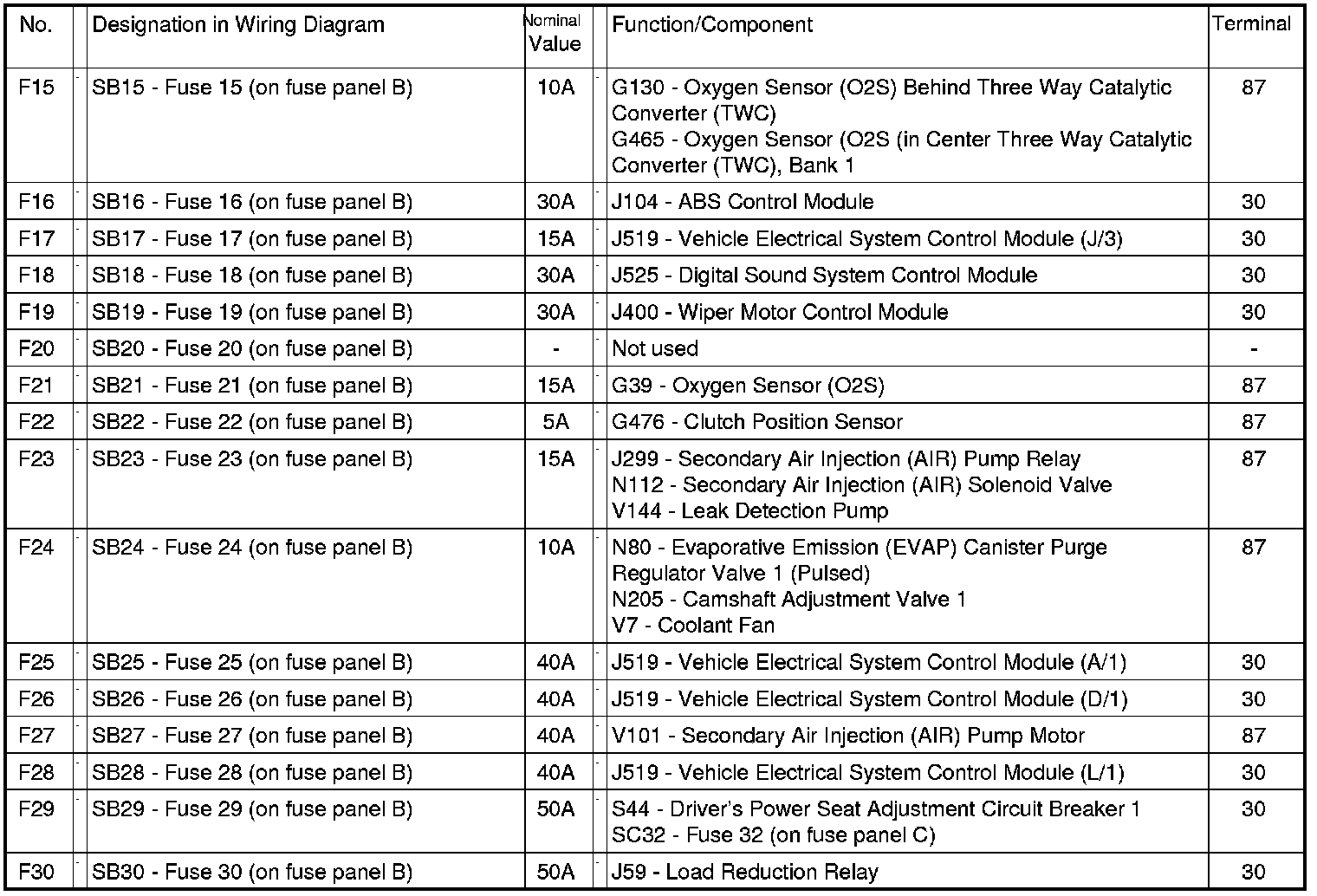

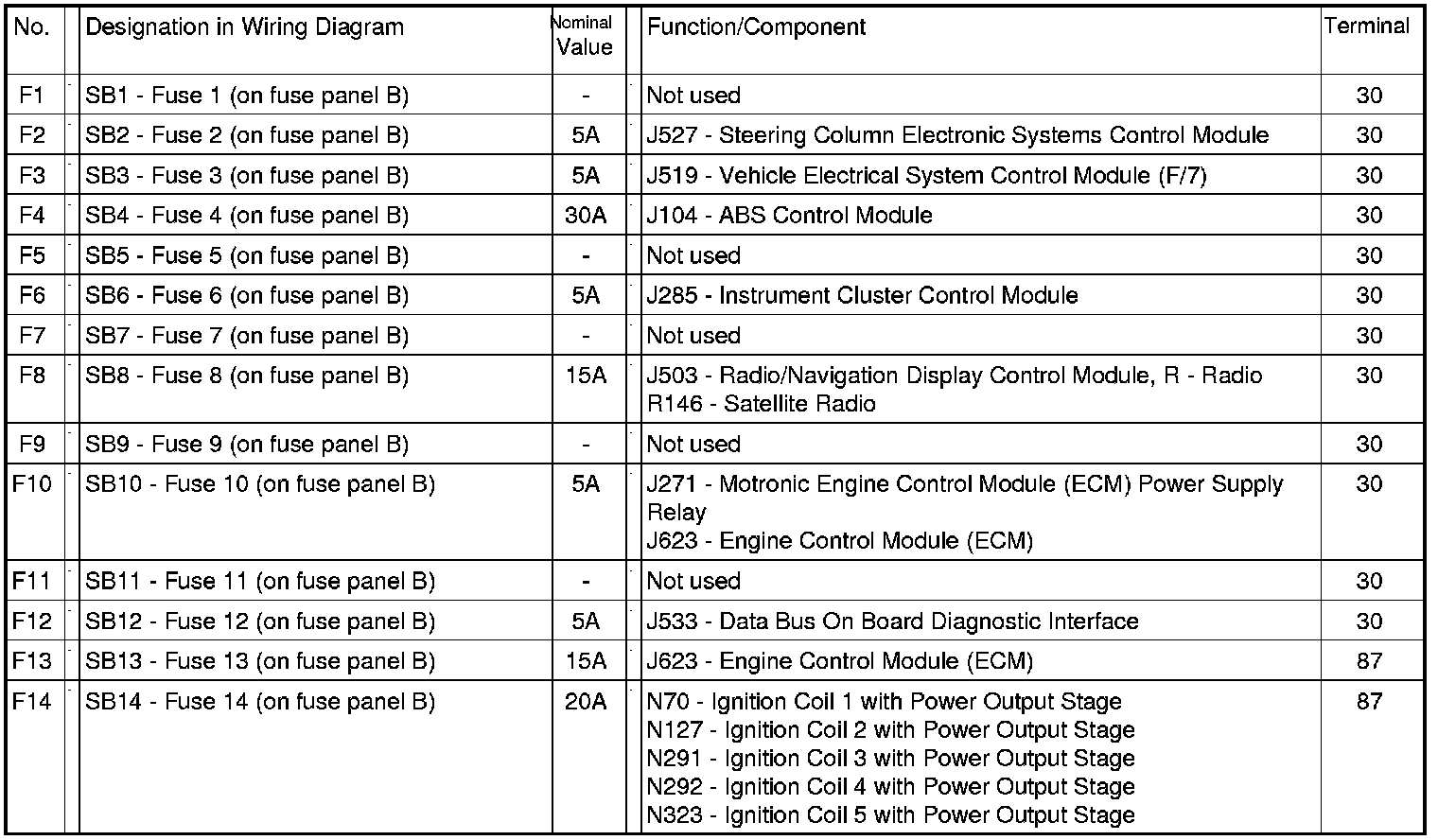

Fuses (SB) On Electronics Box Low, from July 2007
Fuses (SB) On Electronics Box Low, from July 2007
Fuses in engine compartment
Fuses (SB) on electronics box Low, from July 2007
