Fuses (SB) On Electronics Box High, from July 2007
Fuses (SB) On Electronics Box High, from July 2007
Fuses in engine compartment

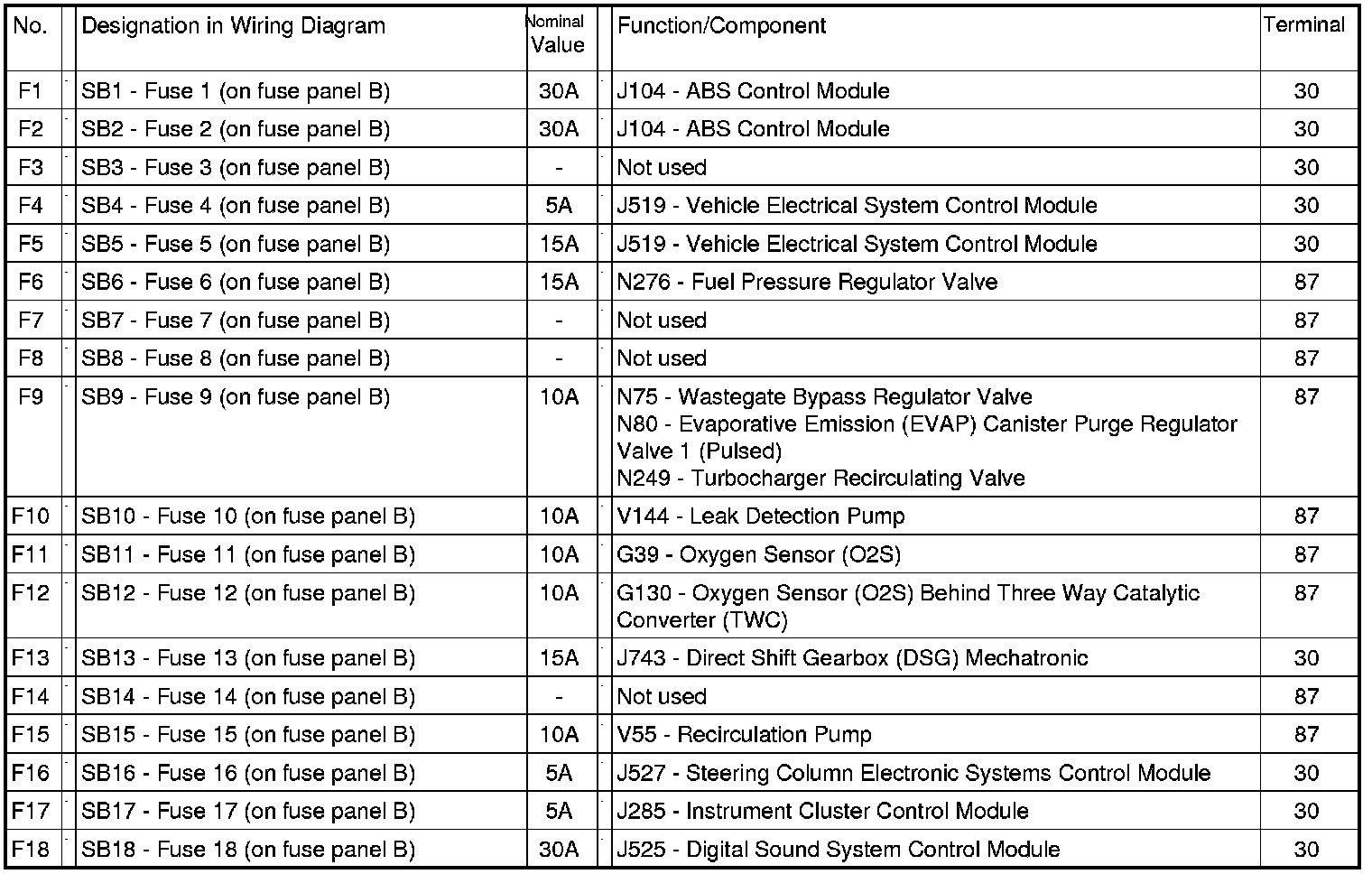

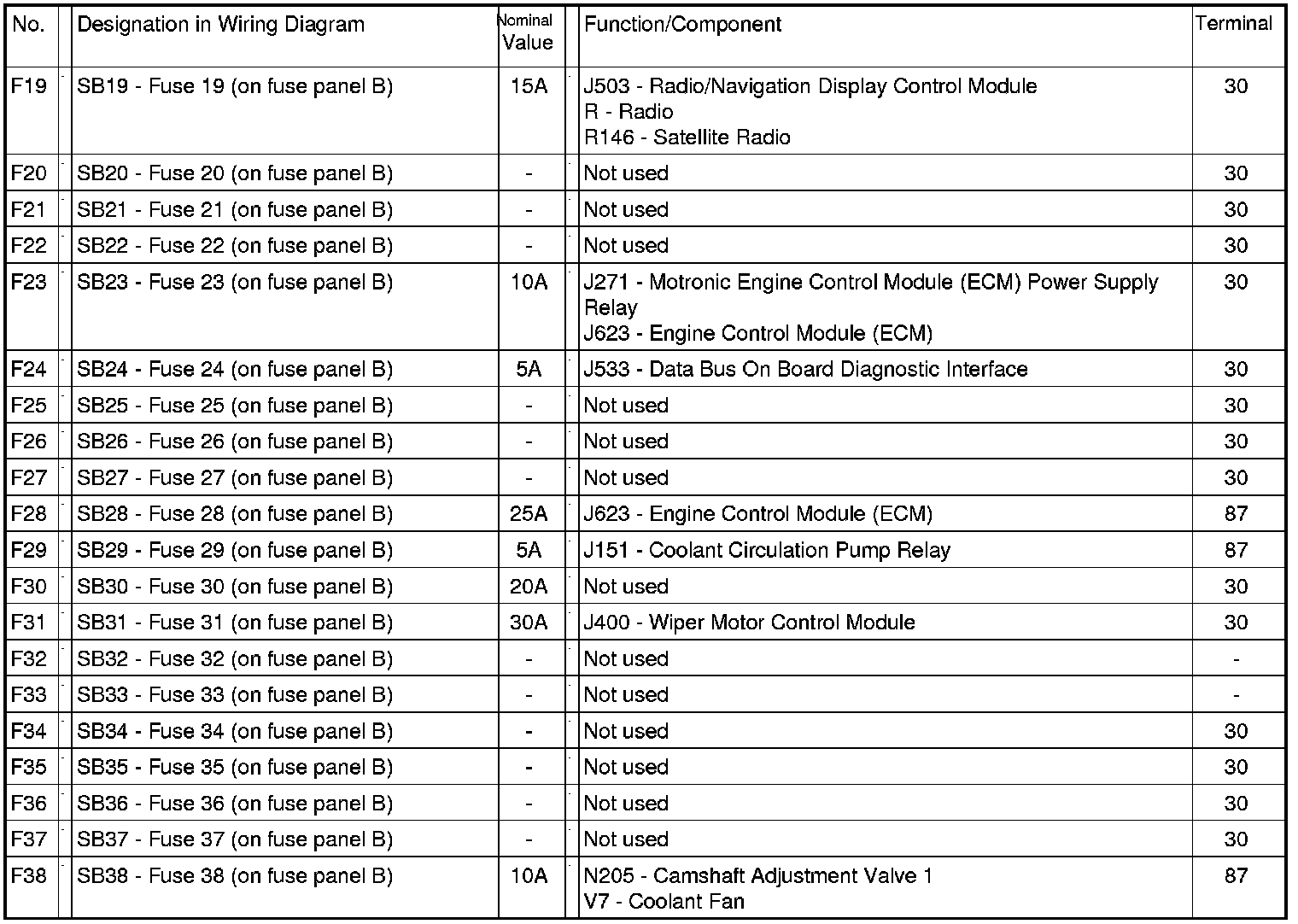

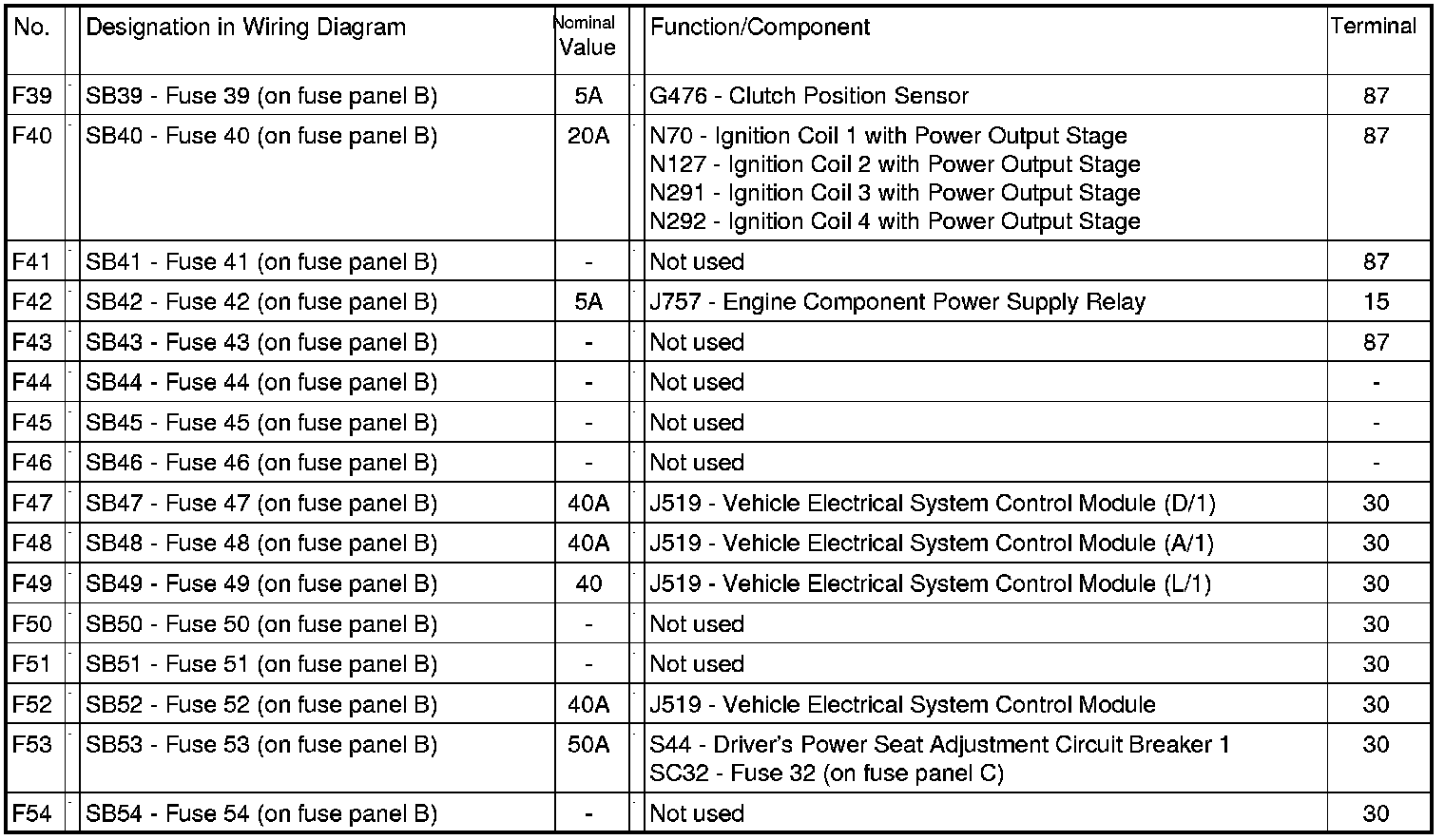

Fuses (SB) on electronics box High, from July 2007
