Fuses (SA) On Fuse Panel, On Electronics Box High, from November 2004







Fuses in engine compartment

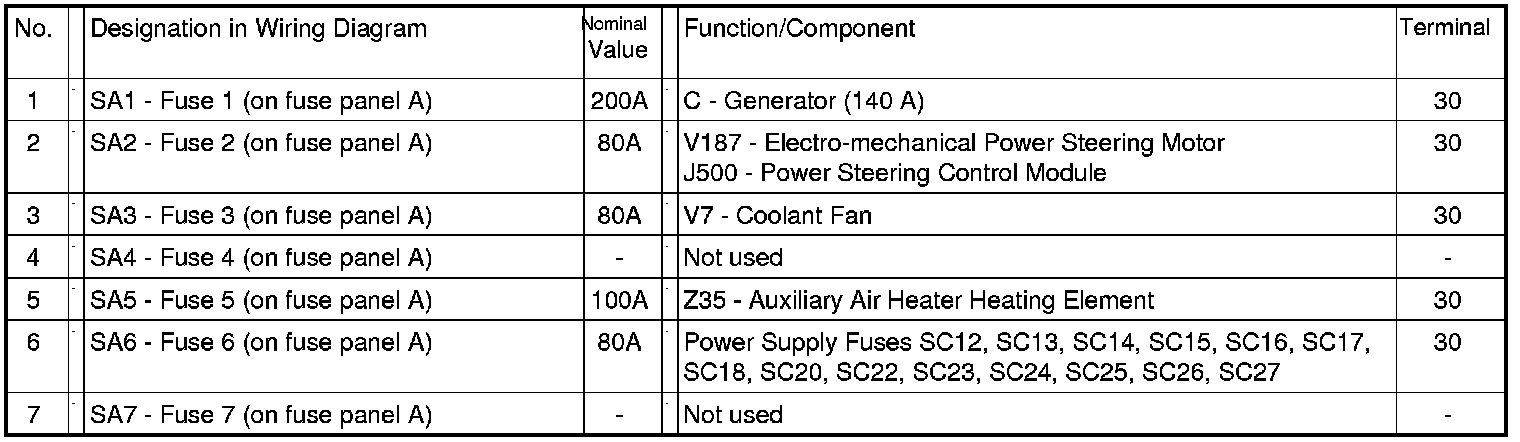

Fuses (SA) on fuse panel, on electronics box High, from November 2004
