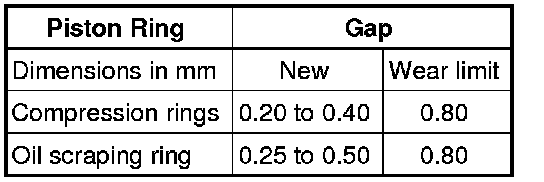

Piston Ring Gap, Checking

Piston Ring Gap, Checking





Special tools, testers and auxiliary items required

• Feeler gauge

Test Sequence

- Push the ring squarely from above, down to approximately 15 mm from the bottom end of the cylinder. To do this use a piston without rings.
