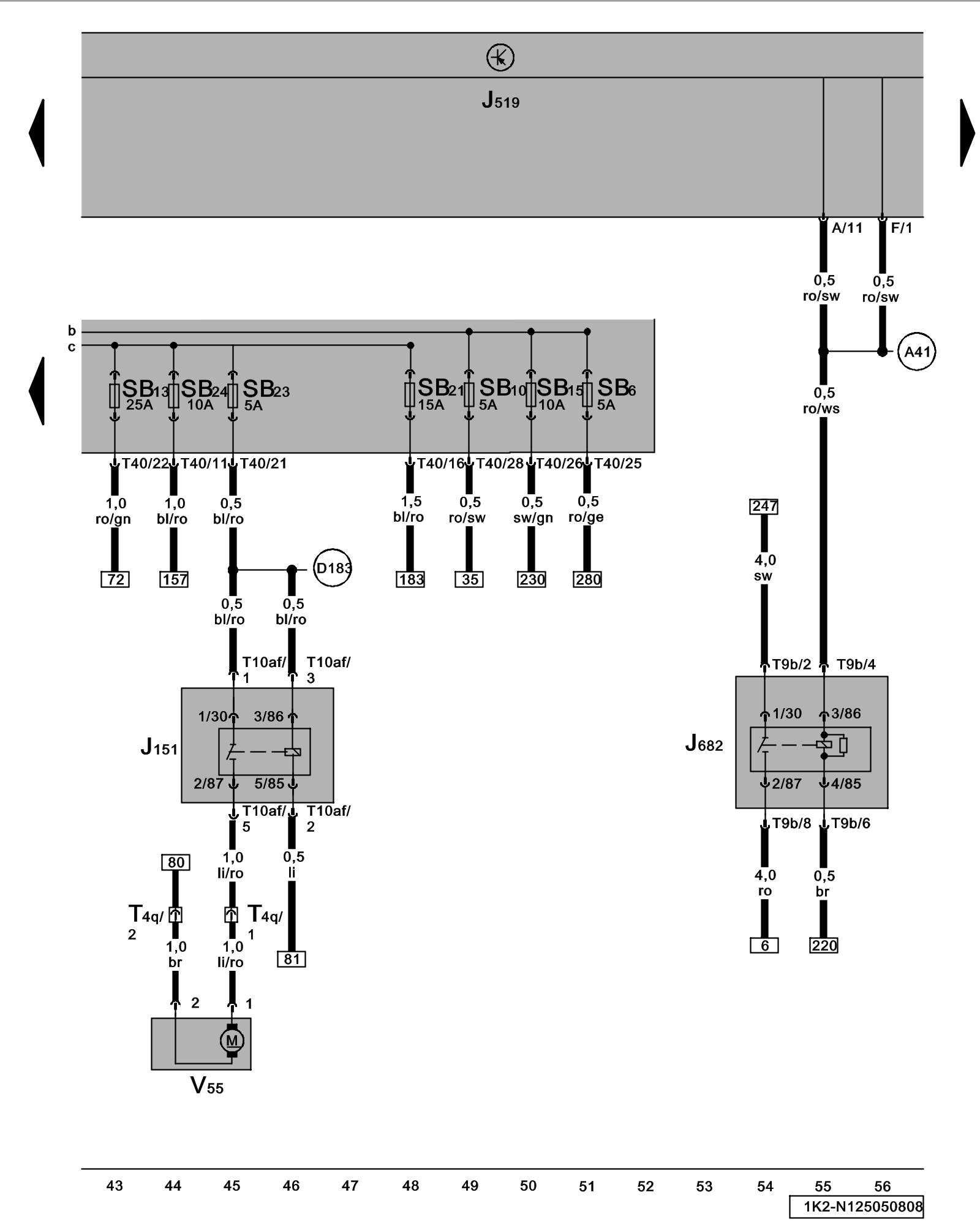

Diagram 125/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Power Supply Relay (terminal 50), Recirculation Pump





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J151 - Coolant Circulation Pump Relay Locations

J519 - Vehicle Electrical System Control Module Locations Locations

J682 - Power Supply Relay (terminal 50) Locations

SB6 - Fuse 6 (on fuse panel B)

SB10 - Fuse 10 (on fuse panel B)

SB13 - Fuse 13 (on fuse panel B)

SB15 - Fuse 15 (on fuse panel B)

SB21 - Fuse 21 (on fuse panel B)

SB23 - Fuse 23 (on fuse panel B)

SB24 - Fuse 24 (on fuse panel B)

T4q - 4-Pin Connector

T10af - 10-Pin Connector

T9b - 9-Pin Connector

T40 - 40-Pin Connector

V55 - Recirculation Pump

(A41) - Plus Connection (50) (in instrument panel wiring harness)

(D183) - Connection 4 (87a) (in engine wiring harness)
