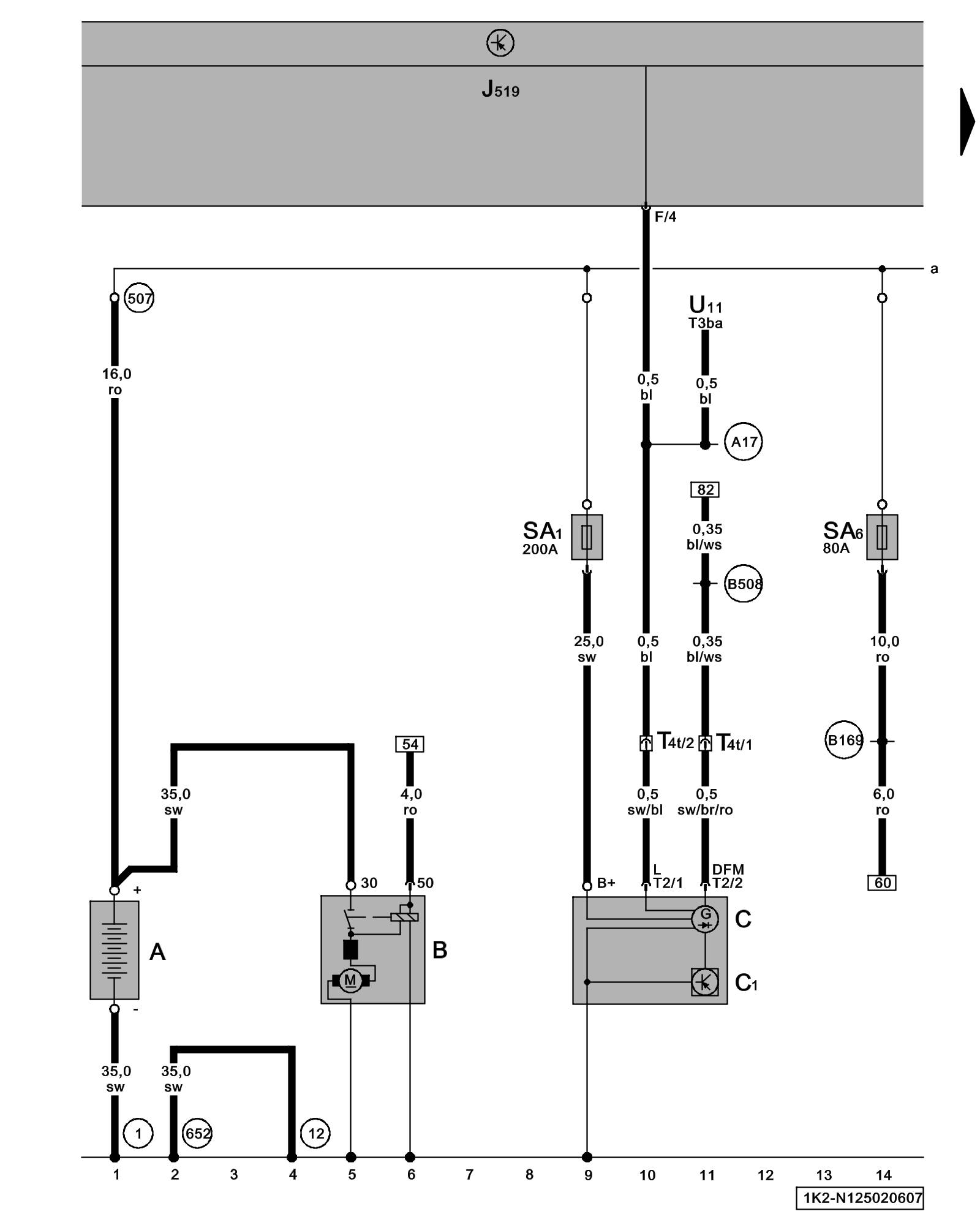

Diagram 125/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Battery, Starter, Generator (GEN), Vehicle Electrical System Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator (GEN)

C1 - Voltage Regulator (VR)

J519 - Vehicle Electrical System Control Module Locations Locations

SA1 - Fuse 1 (on fuse panel A)

SA6 - Fuse 6 (on fuse panel A)

T2 - Double Connector

T3ba - 3-Pin Connector

T4t - 4-Pin Connector

U11 - Interior Socket, 230V, 110V

(1) - Ground strap, battery to body

(12) - Ground Connection (in engine compartment, left)

(507) - Threaded Connection - terminal 30 (on battery fuse holder)

(652) - Transmission/Engine Ground Connection

(A17) - Connection (61) (in instrument panel wiring harness)

(B169) - Plus Connection 1 (30) (in passenger compartment wiring harness)

(B508) - Rotary Field Connection (in interior wiring harness)

Next Diagram 125/3 (Tracks 15-28)
