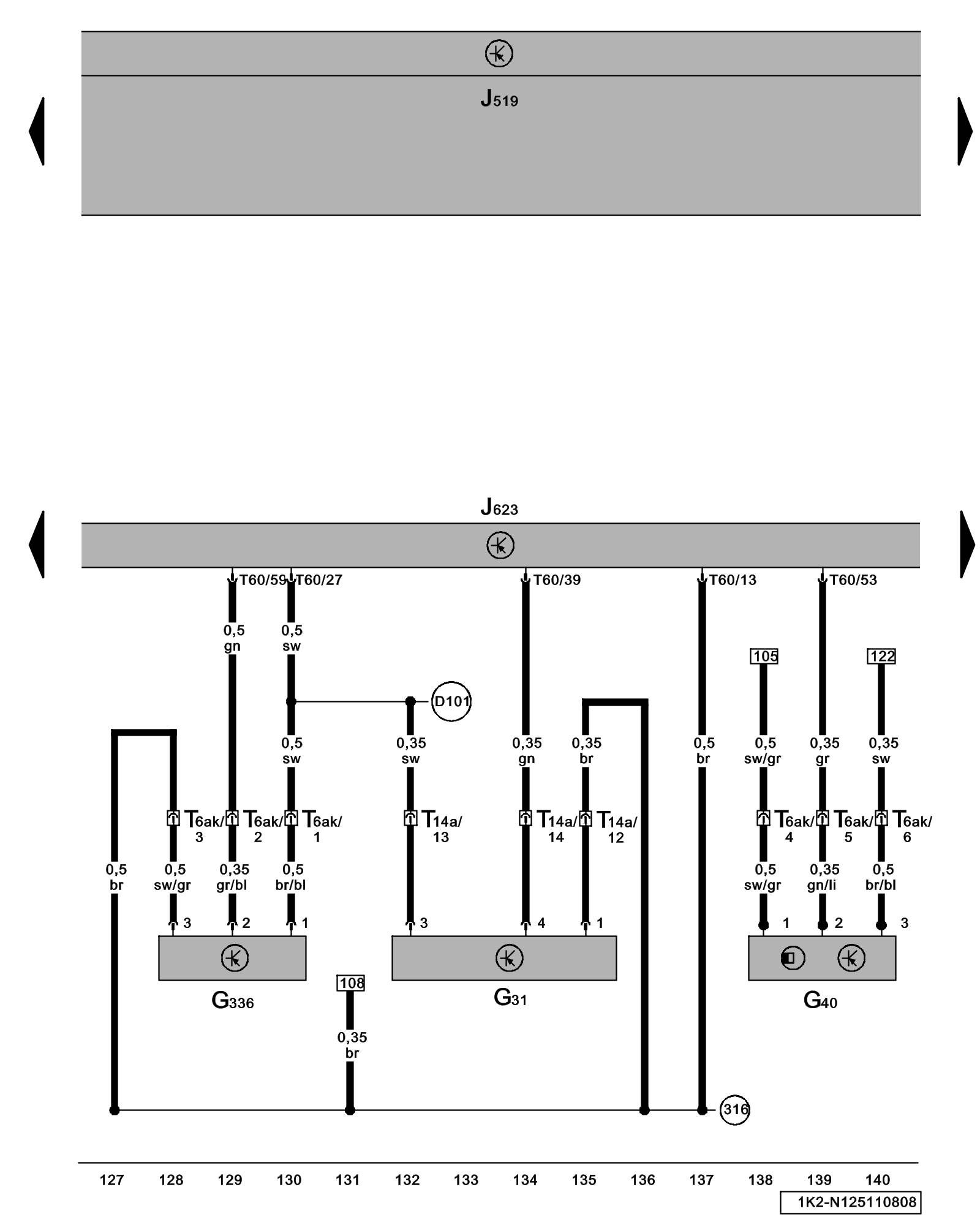

Diagram 125/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Charge Air Pressure Sensor, Camshaft Position (CMP) Sensor, Intake Manifold Runner Position Sensor, Engine Control Module (ECM)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G31 - Charge Air Pressure Sensor Locations

G40 - Camshaft Position (CMP) Sensor Locations

G336 - Intake Manifold Runner Position Sensor 2.0L BPY, CCTA and CBFA

J519 - Vehicle Electrical System Control Module Locations Locations

J623 - Engine Control Module (ECM) Locations

T6ak - 6-Pin Connector

T14a - 14-Pin Connector

T60 - 60-Pin Connector

(316) - Sensor Ground Connection 2 (in engine wiring harness)

(D101) - Connection 1 (in engine compartment wiring harness)
