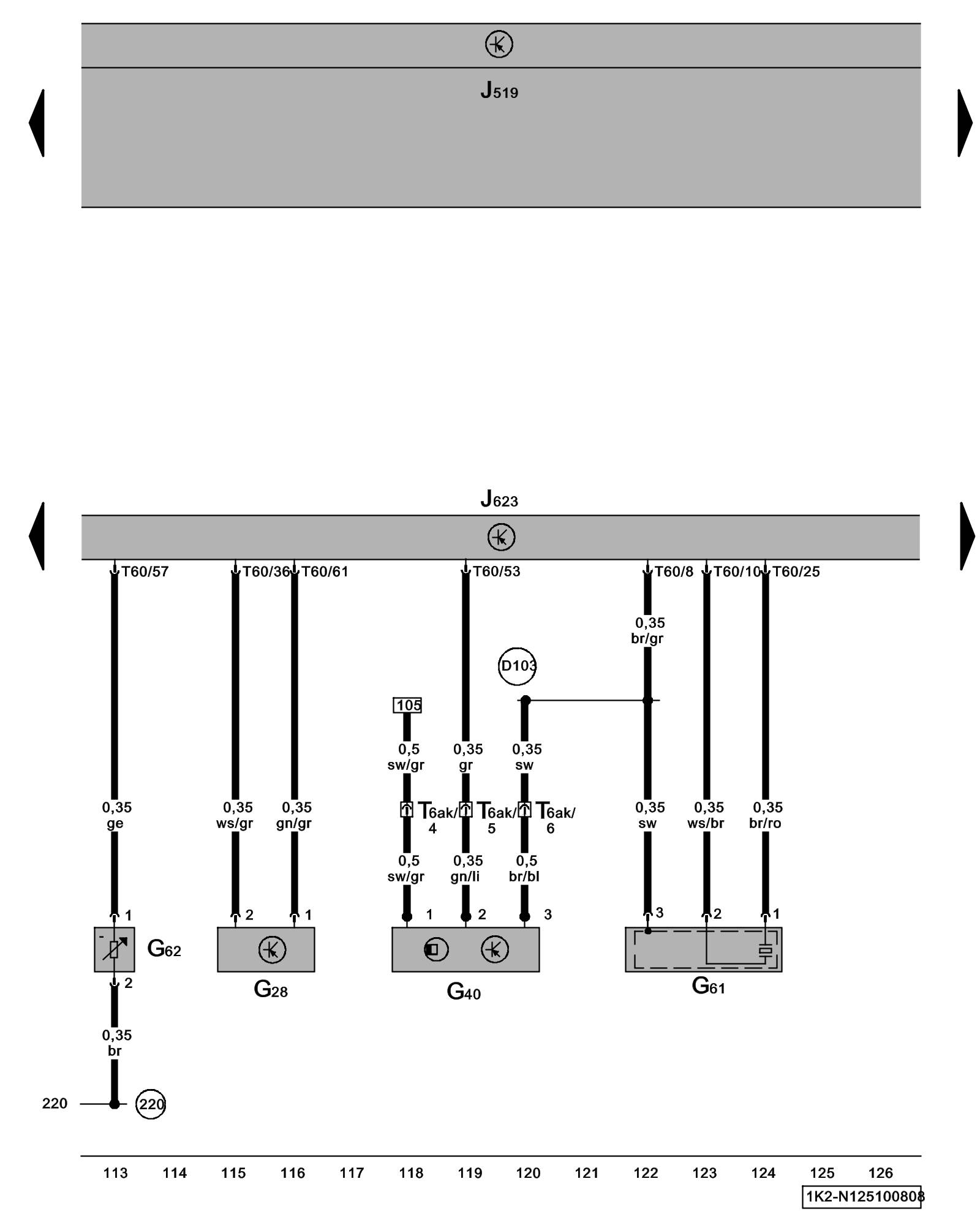

Diagram 125/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine Speed (RPM) Sensor, Camshaft Position (CMP) Sensor, Knock Sensor (KS) 1, Engine Coolant Temperature (ECT) Sensor, Engine Control Module (ECM)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G28 - Engine Speed (RPM) Sensor Locations

G40 - Camshaft Position (CMP) Sensor Locations

G61 - Knock Sensor (KS) 1 Locations

G62 - Engine Coolant Temperature (ECT) Sensor Locations

J519 - Vehicle Electrical System Control Module Locations Locations

J623 - Engine Control Module (ECM) Locations

T6ak - 6-Pin Connector

T60 - 60-Pin Connector

(220) - Sensor Ground Connection (in engine compartment wiring harness)

(D103) - Connection 3 (in engine compartment wiring harness)
