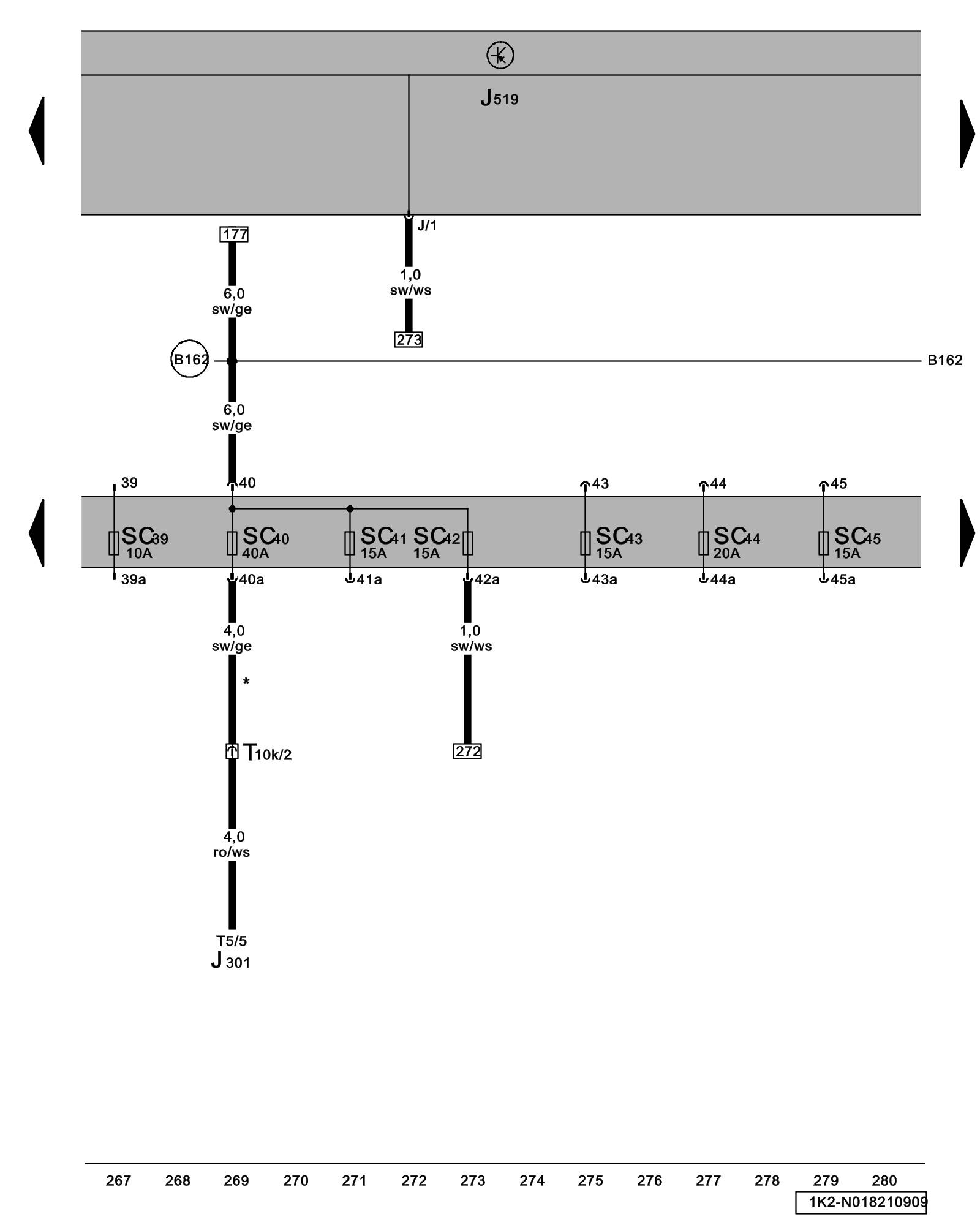

Diagram 18/21 (Tracks 267-280)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses SC39, SC40, SC41, SC42, SC43, SC44, SC45





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light Switch

J301 - A/C Control Module Climatic (Manual Climate Control) Heating and A/C System Components Overview

J519 - Vehicle Electrical System Control Module Locations Locations

SC39 - Fuse 39 (on fuse panel) Locations

SC40 - Fuse 40 (on fuse panel) Locations

SC41 - Fuse 41 (on fuse panel) Locations

SC42 - Fuse 42 (on fuse panel) Locations

SC43 - Fuse 43 (on fuse panel) Locations

SC44 - Fuse 44 (on fuse panel) Locations

SC45 - Fuse 45 (on fuse panel) Locations

T5 - 5-Pin Connector

T10k - 10-Pin Connector

(B162) - Connection (75a), in wiring harness interior

* - Climatic, Only

Previous Diagram 18/20 (Tracks 253-266)

Next Diagram 18/22 (Tracks 281-294)
