Diagram 18/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

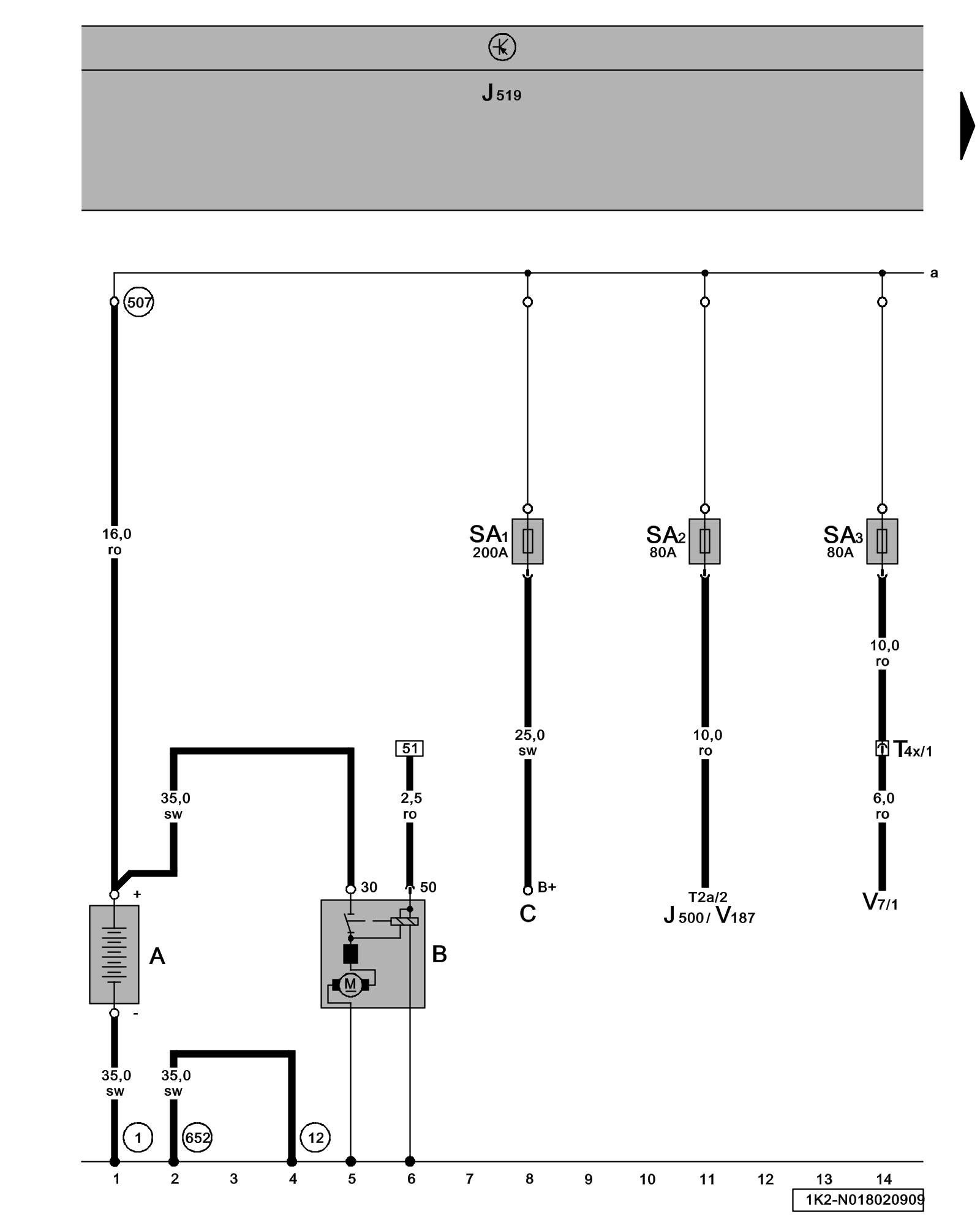

Battery, Starter, Fuses SA1, SA2, SA3





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

C - Generator (GEN)

J500 - Power Steering Control Module Locations

J519 - Vehicle Electrical System Control Module Locations Locations

SA1 - Fuse 1 (on battery fuse panel)

SA2 - Fuse 2 (on battery fuse panel)

SA3 - Fuse 3 (on battery fuse panel)

T2a - Double Connector

T4x - 4-Pin Connector

V7 - Coolant Fan Locations

V187 - Electro-mechanical Power Steering Motor Electromechanical Steering Gear Assembly Overview - Generation 2

(1) - Ground strap, battery to body

(12) - Ground Connection, in engine compartment, left

(507) - Threaded Connection (30) (on relay holder/battery)

(652) - Ground Connection (transmission/engine ground)
