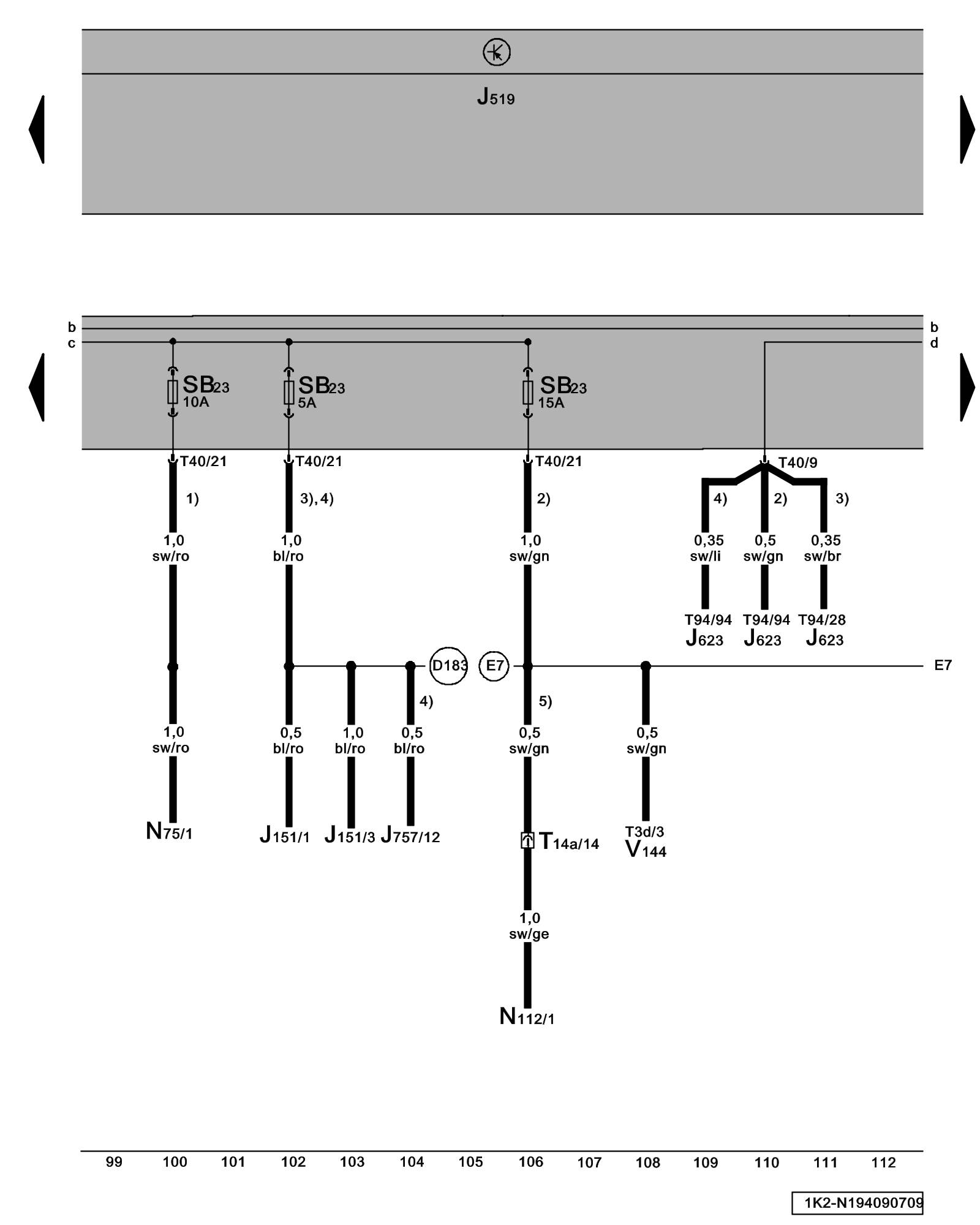

Diagram 194/9 (Tracks 99-112)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J151 - Coolant Circulation Pump Relay Locations

J519 - Vehicle Electrical System Control Module Locations Locations

J623 - Engine Control Module (ECM) Locations

J757 - Engine Component Power Supply Relay Locations

N75 - Wastegate Bypass Regulator Valve 2.0L BPY, CCTA and CBFA

N112 - Secondary Air Injection (AIR) Solenoid Valve Locations

SB23 - Fuse 23 (on fuse panel B)

T3d - 3-Pin Connector

T14a - 14-Pin Connector

T40 - 40-Pin Connector

T94 - 94-Pin Connector

V144 - Leak Detection Pump (LDP) Locations

(D183) - Connection 4 (87a) (in engine compartment wiring harness)

(E7) - Connection (87a) (in Motronic wiring harness)

1) - Only models with engine code CBEA

2) - Only models with engine codes CBTA, CBUA

3) - Only models with engine code CCTA

4) - Only models with engine code CBFA

5) - Only models with engine code CBVA

Previous Diagram 194/8 (Tracks 85-98)

Next Diagram 194/10 (Tracks 113-126)
