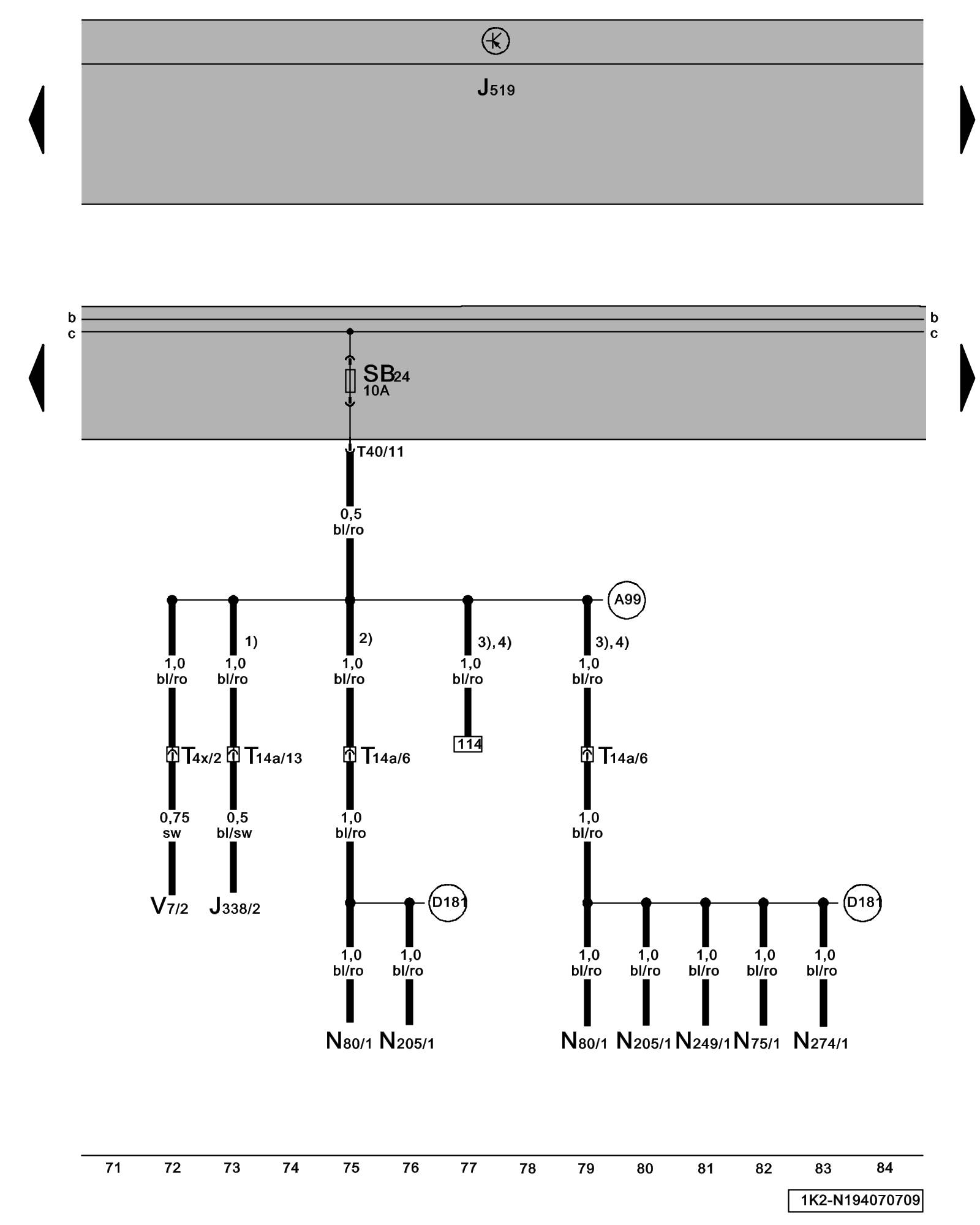

Diagram 194/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J338 - Throttle Valve Control Module Locations

J519 - Vehicle Electrical System Control Module Locations Locations

N75 - Wastegate Bypass Regulator Valve 2.0L BPY, CCTA and CBFA

N80 - Evaporative Emission (EVAP) Canister Purge Regulator Valve 1 Locations

N205 - Camshaft Adjustment Valve 1 Locations

N249 - Turbocharger Recirculating Valve 2.0L BPY, CCTA and CBFA

N274 - Wastegate Bypass Regulator Valve 2 2.0L BPY, CCTA and CBFA

SB24 - Fuse 24 (on fuse panel B)

T4x - 4-Pin Connector

T14a - 14-Pin Connector

T40 - 40-Pin Connector

V7 - Coolant Fan Locations

(A99) - Connection 1 (87) (in instrument panel wiring harness)

(D181) - Connection 2 (87a) (in engine compartment wiring harness)

1) - Only models with engine code CJAA

2) - Only models with engine codes CBTA, CBUA

3) - Only models with engine code CCTA

4) - Only models with engine code CBFA

Previous Diagram 194/6 (Tracks 57-70)

Next Diagram 194/8 (Tracks 85-98)
