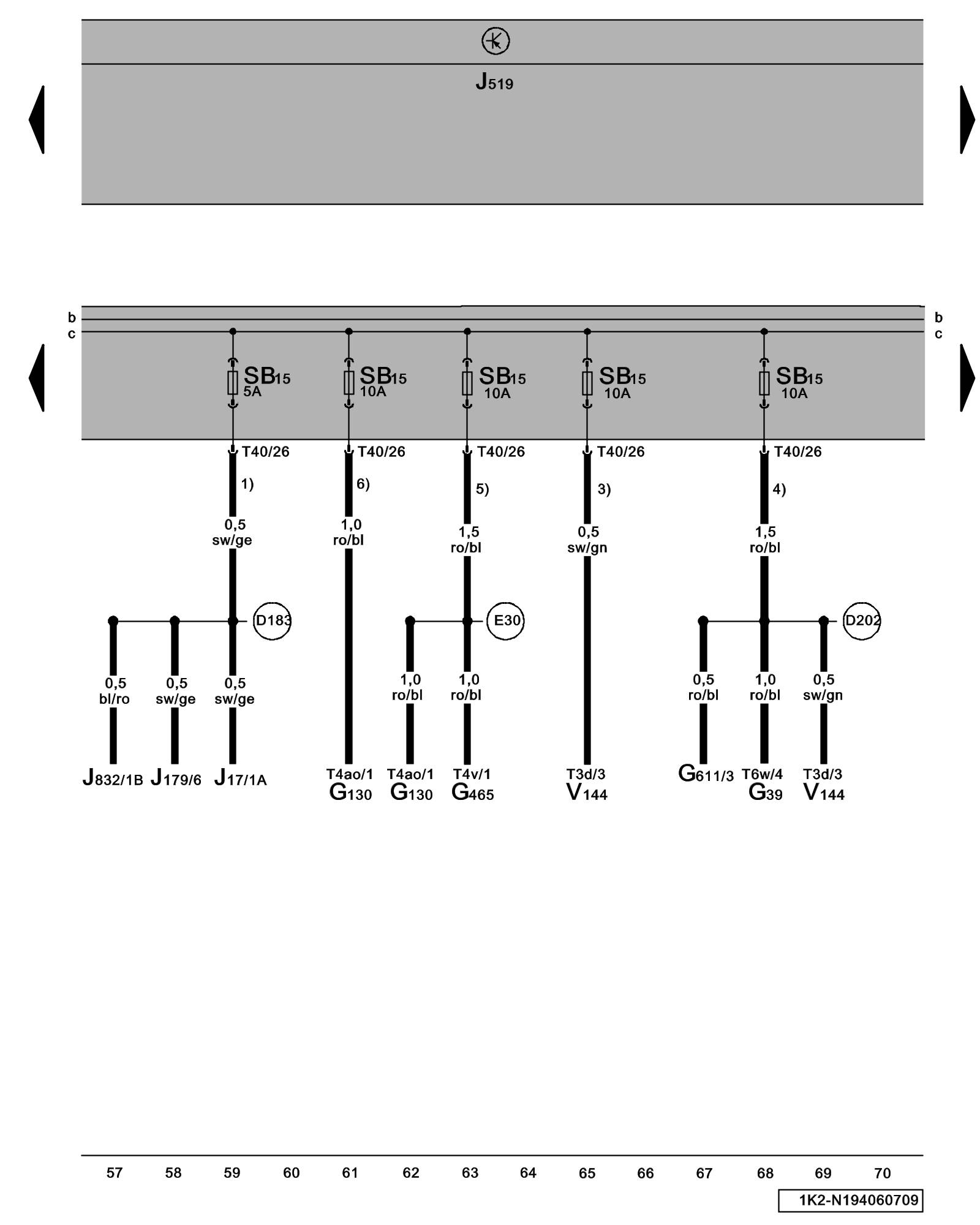

Diagram 194/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J17 - Fuel Pump (FP) Relay Locations

J179 - Automatic Glow Time Control Module Locations

J832 - Auxiliary Fuel Pump Relay

G39 - Heated Oxygen Sensor (HO2S) Locations

G130 - Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) Locations

G465 - Oxygen Sensor (O2S (in Center Three Way Catalytic Converter (TWC), Bank 1 Locations

G611 - Radiator Identification Sensor Locations

J519 - Vehicle Electrical System Control Module Locations Locations

SB15 - Fuse 15 (on fuse panel B)

T3d - 3-Pin Connector

T4v - 4-Pin Connector

T4ao - 4-Pin Connector

T6w - 6-Pin Connector

T40 - 40-Pin Connector

V144 - Leak Detection Pump (LDP) Locations

(D183) - Connection 4 (87a) (in engine compartment wiring harness)

(D202) - Connection 6 (87a) (in engine compartment wiring harness)

(E30) - Connection (87a) (in engine wiring harness)

1) - Only models with engine code CJAA

3) - Only models with engine code CCTA

4) - Only models with engine code CBFA

5) - Only models with engine code CBUA

6) - Only models with engine code CBTA
