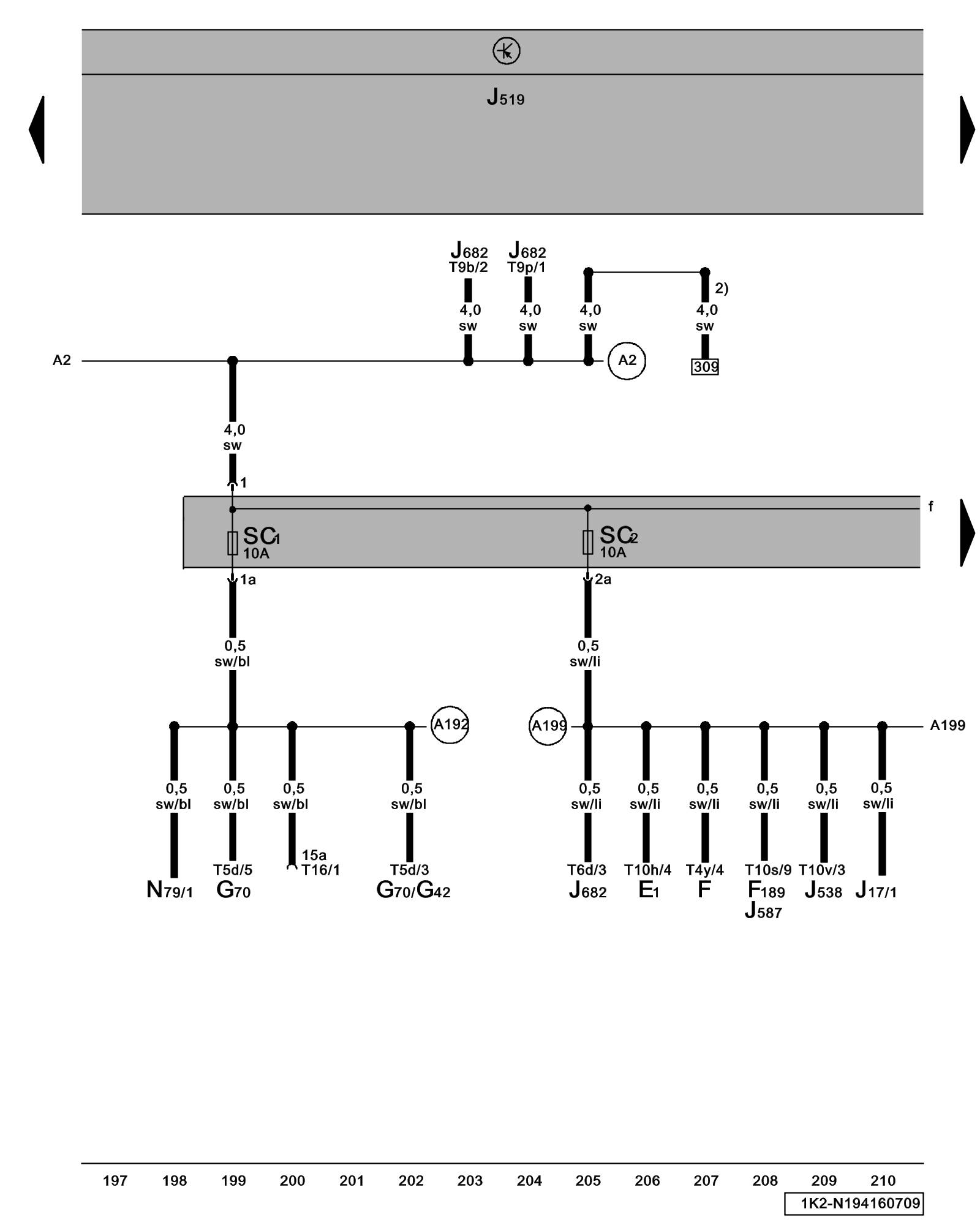

Diagram 194/16 (Tracks 197-210)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E1 - Light Switch

F - Brake Light Switch Brake Light and Park Brake Light Switch

F189 - Tiptronic Switch

G42 - Intake Air Temperature (IAT) Sensor Locations

G70 - Mass Air Flow (MAF) Sensor Locations

J17 - Fuel Pump (FP) Relay Locations

J519 - Vehicle Electrical System Control Module Locations Locations

J538 - Fuel Pump (FP) Control Module Locations

J587 - Selector Lever Sensor Control Module Direct Shift Gearbox 02E (DSG)

J682 - Power Supply Relay (terminal 50) Locations

N79 - Positive Crankcase Ventilation (PCV) Heating Element

SC1 - Fuse 1 (on fuse panel C) Locations

SC2 - Fuse 2 (on fuse panel C) Locations

T4y - 4-Pin Connector

T5d - 5-Pin Connector

T6d - 6-Pin Connector

T9b - 9-Pin Connector

T10h - 10-Pin Connector

T10s - 10-Pin Connector

T10v - 10-Pin Connector

T16 - 16-Pin Connector, under instrument panel, left, Data Link Connector (DLC)

(A2) - Plus Connection (15) (in instrument panel wiring harness)

(A192) - Plus Connection 3 (15a) (in instrument panel wiring harness)

(A199) - Plus Connection 4 (15a) (in instrument panel wiring harness)
