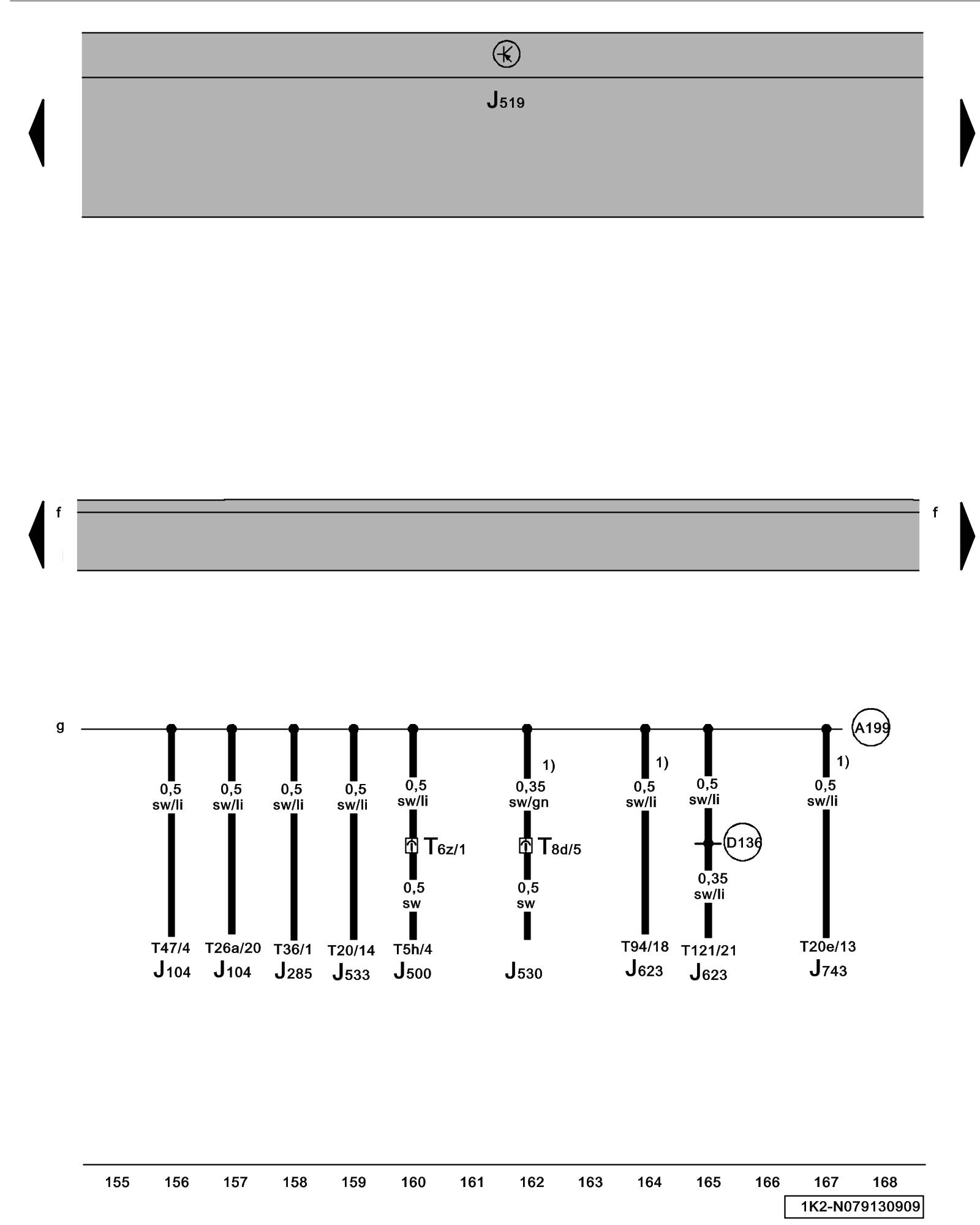

Diagram 79/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Fuses (on fuse panel C)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS Control Module Locations

J285 - Instrument Cluster Control Module Locations Locations

J500 - Power Steering Control Module Locations

J530 - Garage Door Opener Control Module

J533 - Data Bus On Board Diagnostic Interface Locations Locations

J623 - Engine Control Module (ECM) Locations

J743 - Direct Shift Gearbox (DSG) Mechatronic

SC2 - Fuse 2 (on fuse panel C) Locations

T5h - 5-Pin Connector

T6z - 6-Pin Connector

T8d - 8-Pin Connector

T20 - 20-Pin Connector

T20e - 20-Pin Connector

T26a - 26-Pin Connector

T36 - 36-Pin Connector

T47 - 47-Pin Connector

T94 - 94-Pin Connector

T121 - 121-Pin Connector

(A199) - Plus Connection 4 (15a)(in instrument panel wiring harness)

(D136) - Plus Connection 2 (15a (in engine compartment wiring harness)

1) - Through June 2007

Previous Diagram 79/12 (Tracks 141-154)

Next Diagram 79/14 (Tracks 169-182)
