Luggage / Roof Rack Frame: Service and Repair

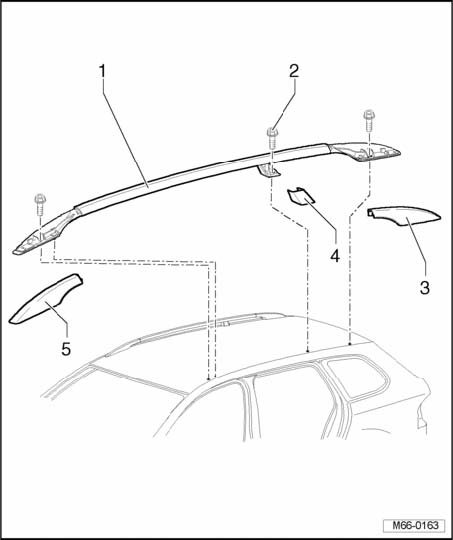

Roof Rail Assembly Overview







1 - Roof rail
2 - Screw
- 3 per side
- 20 Nm

3 - Rear roof rail cover
4 - Center roof rail cover
5 - Front roof rail cover
