Storage Compartment Cover

Storage Compartment Cover

Level Luggage Compartment Floor

Removal

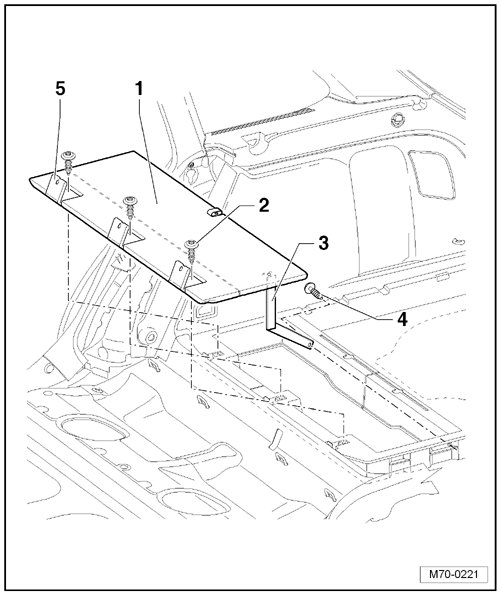

- Fold the storage compartment cover - 1 - up and remove the bolt - 4 - from the support - 3 - (2 Nm).

- Fold covers - 5 - up.

- Remove the three bolts - 2 - from the storage compartment cover - 1 - (2 Nm).

- Remove the storage compartment cover - 1 - from the vehicle.





Installation

- To install, perform the steps used for removal in reverse order.
