Trunk / Liftgate Striker: Service and Repair

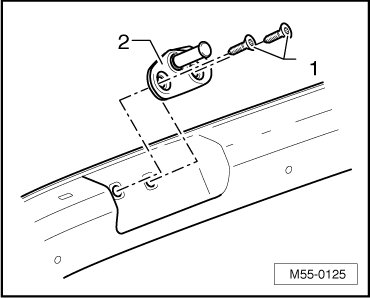

Striker

Removing

- Remove lock carrier cover.





- Unscrew screws - 1 - and remove striker - 2 -.

Installing

- Assemble the striker - 2 -.





Tightening specification for screws - 1 -: 23 Nm

Further installation is in reverse order of removal.
