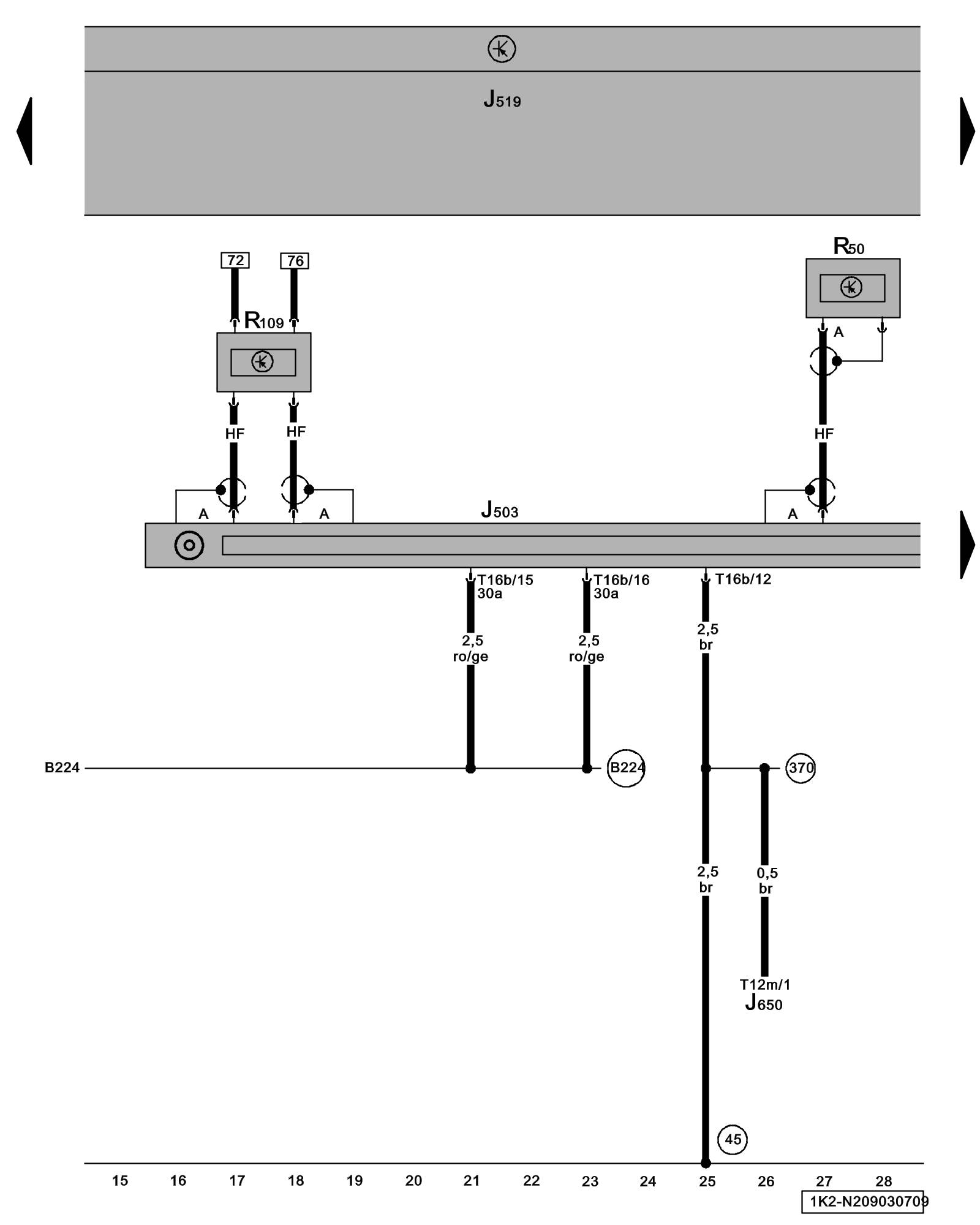

Diagram 209/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/Navigation Display Control Module, Navigation System Antenna, Right Antenna Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Control Module Radio Navigation System Component Locations

J519 - Vehicle Electrical System Control Module Locations Locations

J650 - Multimedia Control Module

R50 - Navigation System Antenna Antenna Systems Overview

R109 - Right Antenna Module Antenna Systems Overview

T12m - 12-Pin Connector

T16b - 16-Pin Connector

(45) - Ground Connection (behind instrument panel, center)

(370) - Ground Connection 5 (in main wiring harness)

(B224) - Radio Connection 1 (in interior wiring harness)
