Brake Booster Vacuum Sensor

Brake Booster Vacuum Sensor

Removing

- Remove the battery.

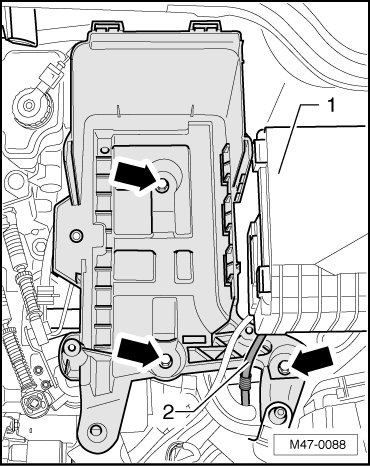

- Open cover - 1 - and unscrew wire - 2 - from fuse holder.





- Remove the bolts - arrows - and remove battery holder.

- Disconnect harness connector - 1 - from Brake Booster Vacuum Sensor (G483) - 2 -.





- Insert a screwdriver between stop and one end of securing ring into groove of sealing ring.

- Now press securing ring - 1 - as far out of groove until brake booster vacuum sensor - 2 - can be pulled out of brake booster.





Installing

- Installation is performed in the reverse order of removal.
