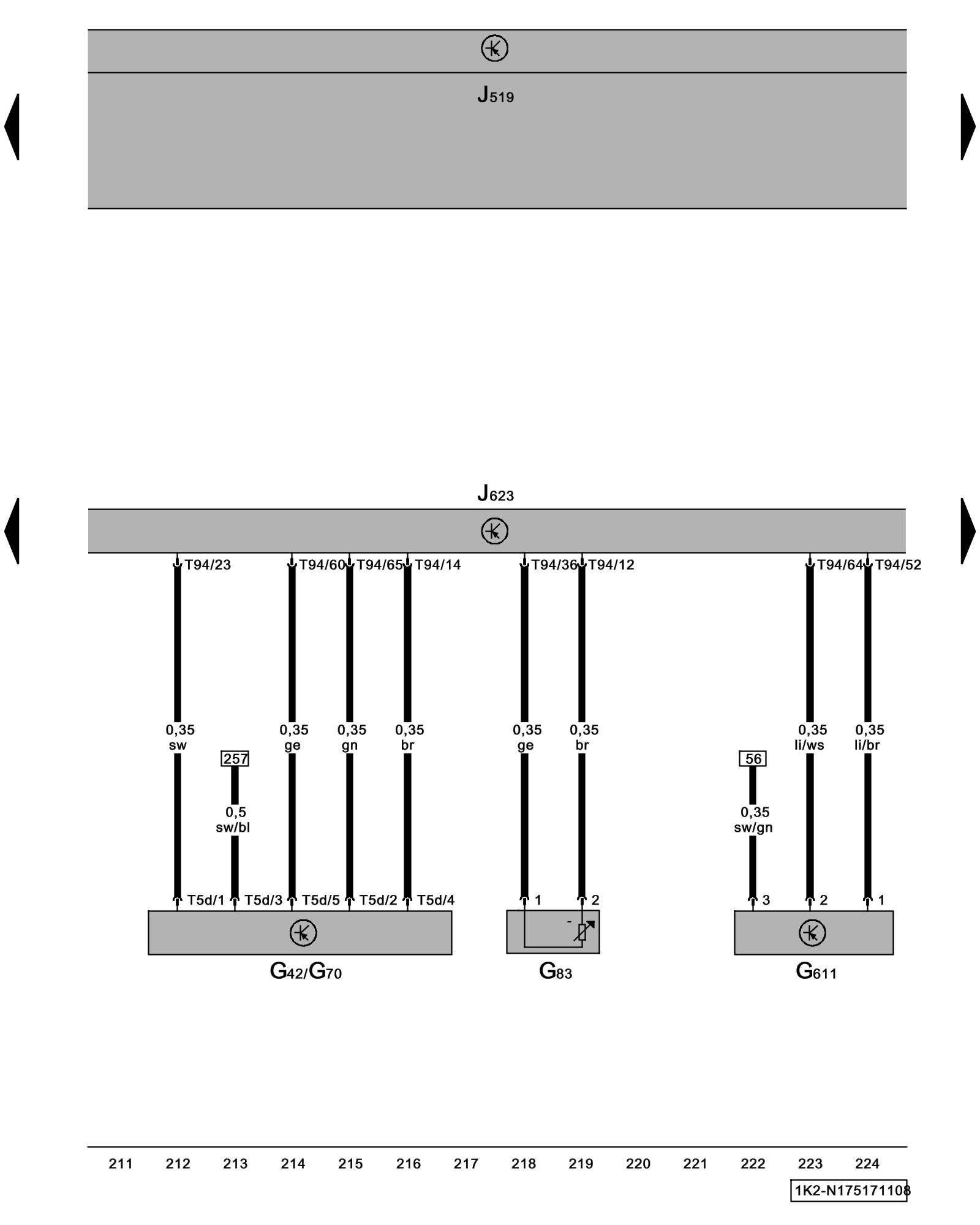

Diagram 175/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Intake Air Temperature (IAT) Sensor, Mass Air Flow (MAF) Sensor, Engine Coolant Temperature (ECT) Sensor (on Radiator), Radiator Identification Sensor, Vehicle Electrical System Control Module, Engine Control Module (ECM)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G42 - Intake Air Temperature (IAT) Sensor Locations

G70 - Mass Air Flow (MAF) Sensor Locations

G83 - Engine Coolant Temperature (ECT) Sensor (on Radiator) Locations

G611 - Radiator Identification Sensor Locations

J519 - Vehicle Electrical System Control Module Locations Locations

J623 - Engine Control Module (ECM) Locations

T5d - 5-Pin Connector

T94 - 94-Pin Connector
